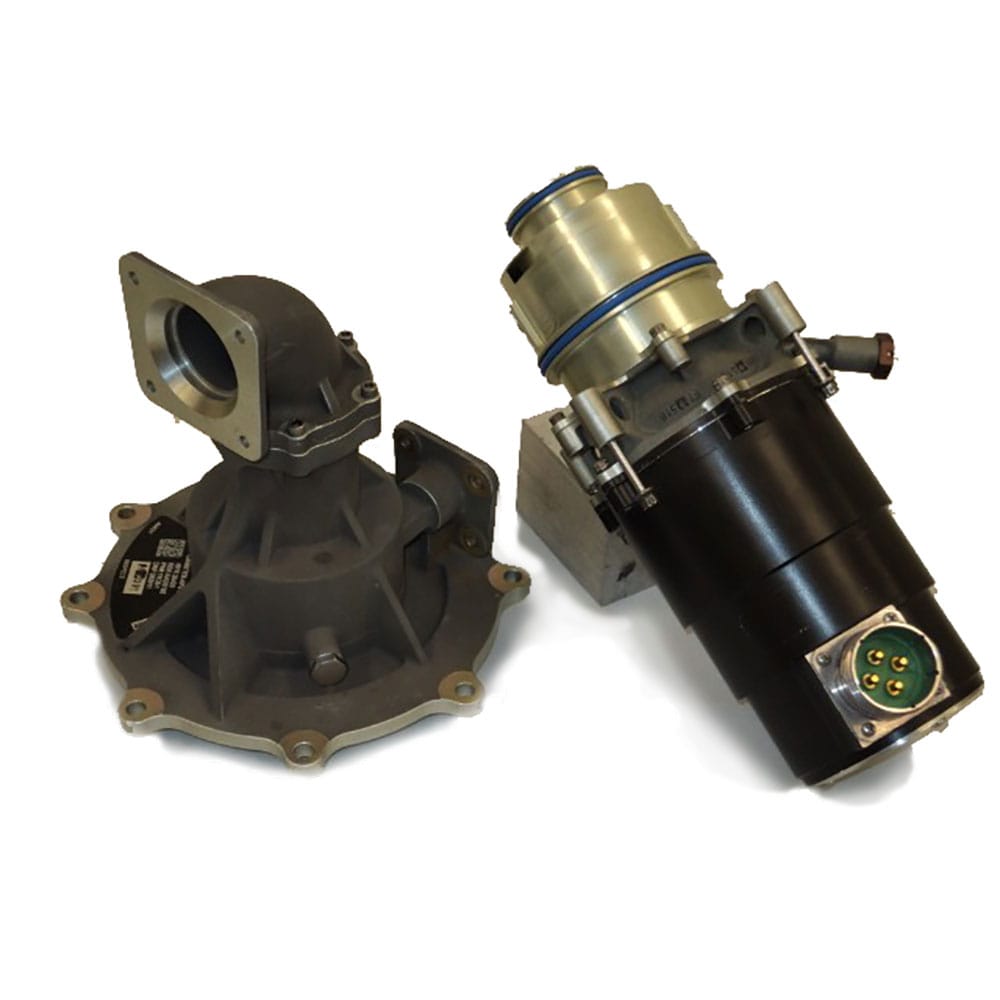

Spar-mounted or cartridge/canister pumps supplying fuel to the APU during ground and flight operations. This type of pump provides less flow and pressure than a typical engine feed pump and may or may not be required to re-prime at altitude.
流速:Up to 10 gpm L/min 与燃料类型共同使用:RT, Jet-A, Jet A-1, TS-1 工作温度:'-60 to 70 °C

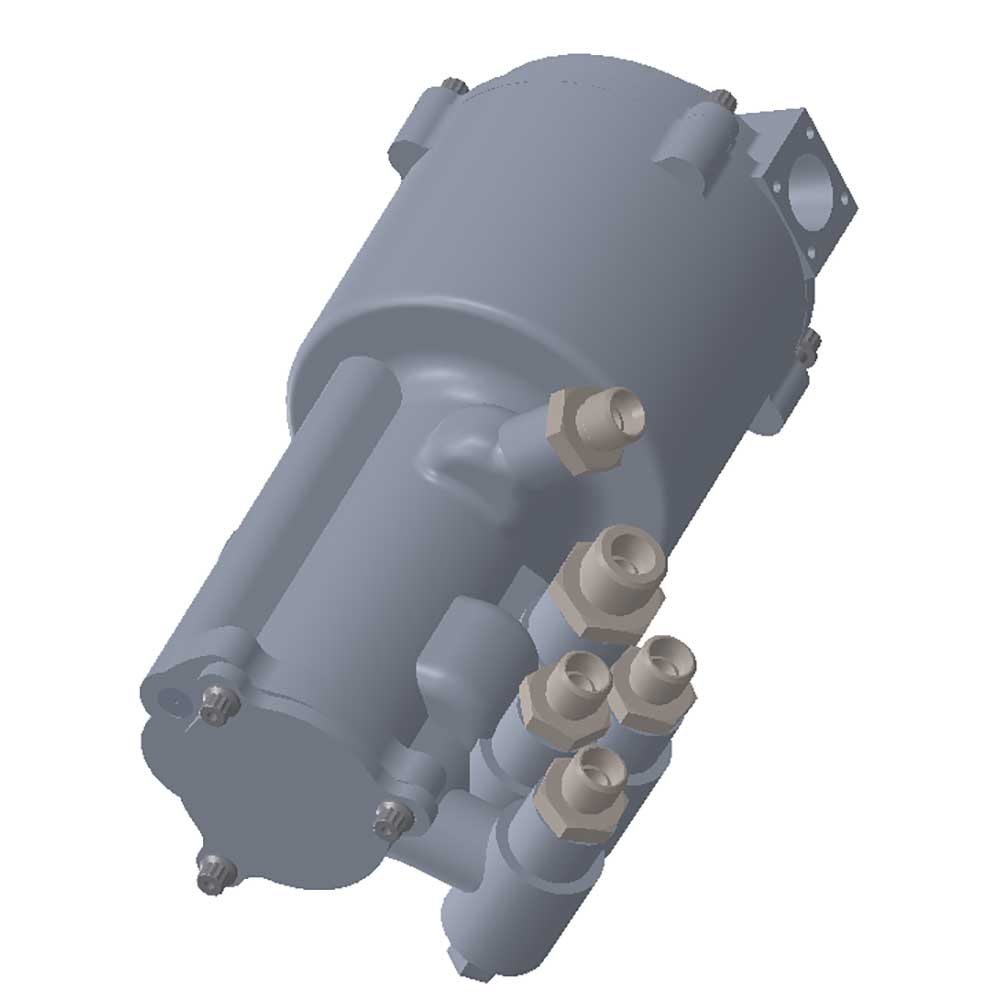

This electric motor-driven scavenge pump assembly is for UAV platforms and ideal for medium and continuous duty; suitable for propulsion or power generation gas turbine engines.
流速:at 60 psid per scavenge section: 2 gal/min 泵类型:Permanent magnet brushless DC 运行速度:0 to 6,000 RPM

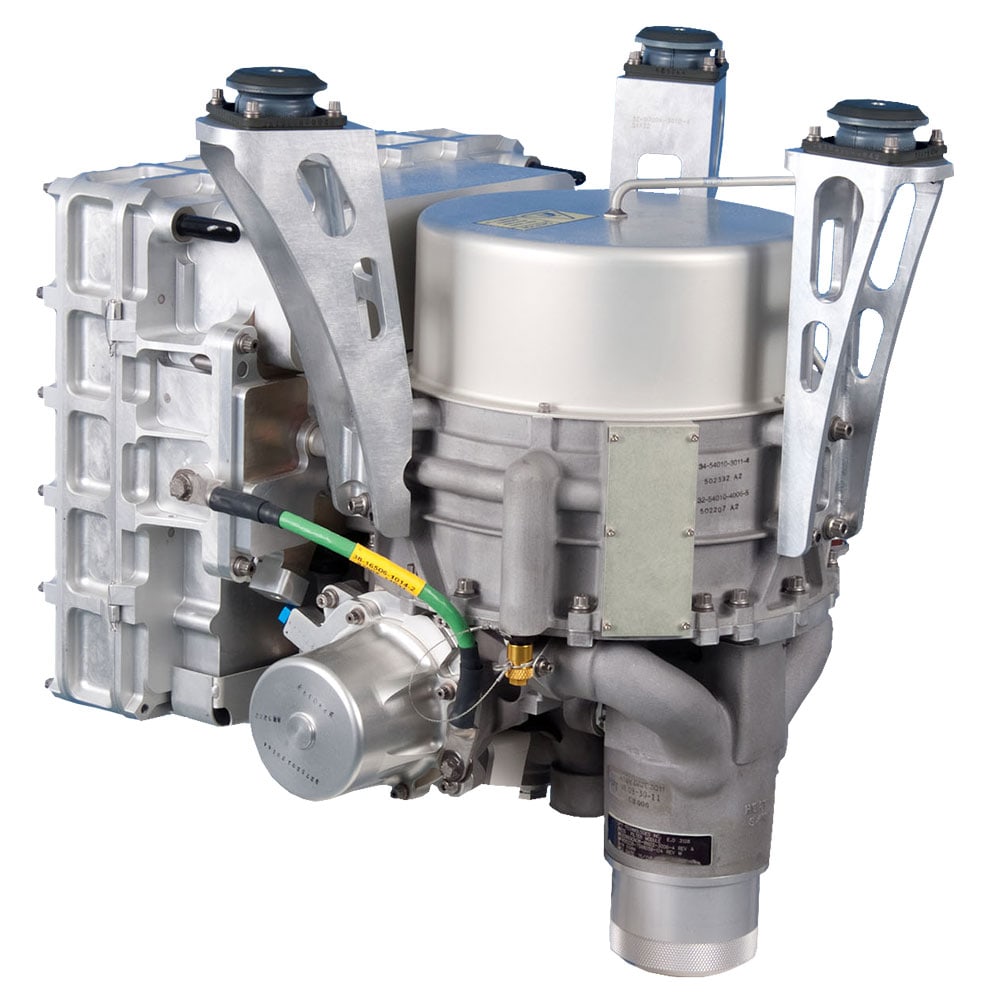

Electric motor-driven (EMD) lubrication and scavenge pumps use brushless DC motors combined with gerotor technology to provide a custom and reliable solution. The EMD pump sends high-pressure lubricating oil to the gas turbine engine while simultaneously
主体尺寸:Depends on design needs 结构材料:Aluminum pump housing, gerotors and shafts are typically 8620 steel, traditional copper-wound motors 最大运行压力:Depends on design needs

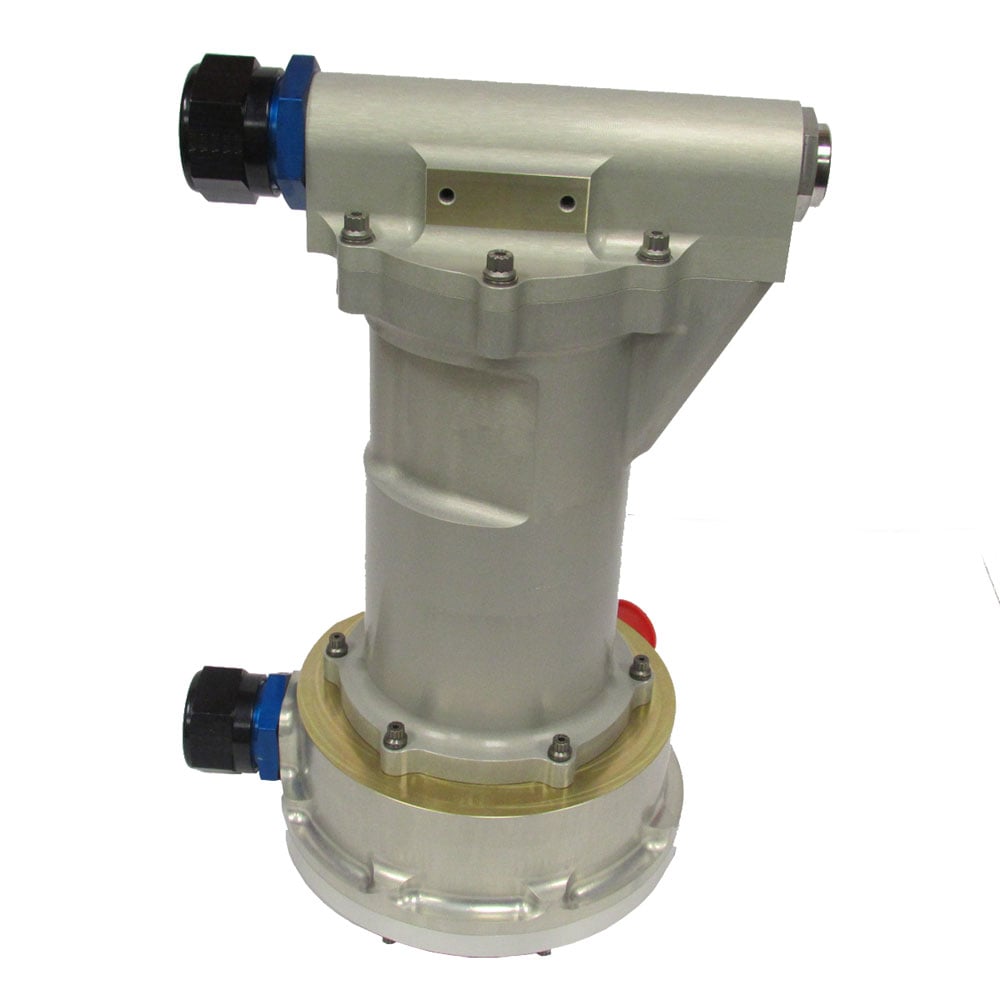

The electric motor-driven pump (EMP) is liquid cooled to increase the efficiency of the motor cooling for aircraft-specific applications, where the flow can be easily adjusted to meet the needs of your application.
输入电压:115VAC 400hz VAC 电流:Max: 25 amps A 额定扭矩:11.5 in lbs maximum lb-inch

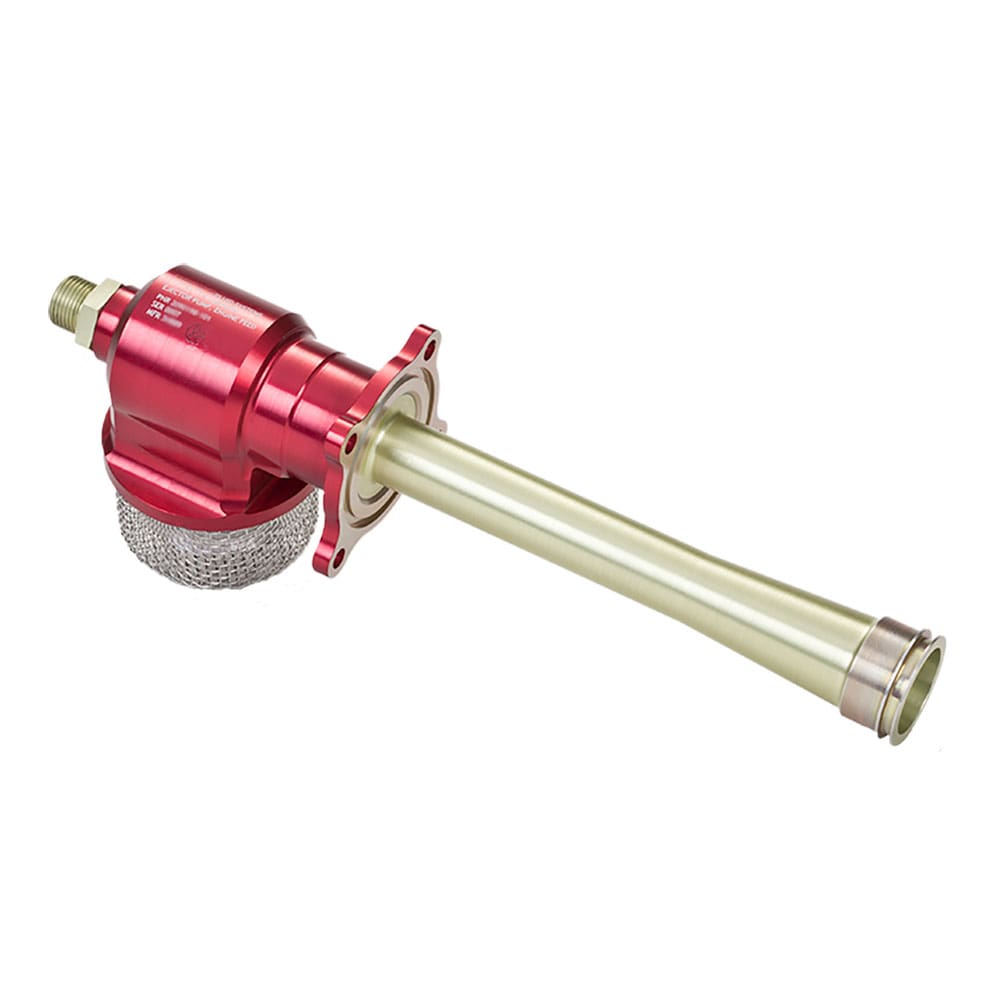

Parker Aerospace's engine feed ejector pumps are hydro-mechanical jet pumps, with no moving parts. The pumps independently supply fuel to their respective engines using the motive flow supplied by the engine

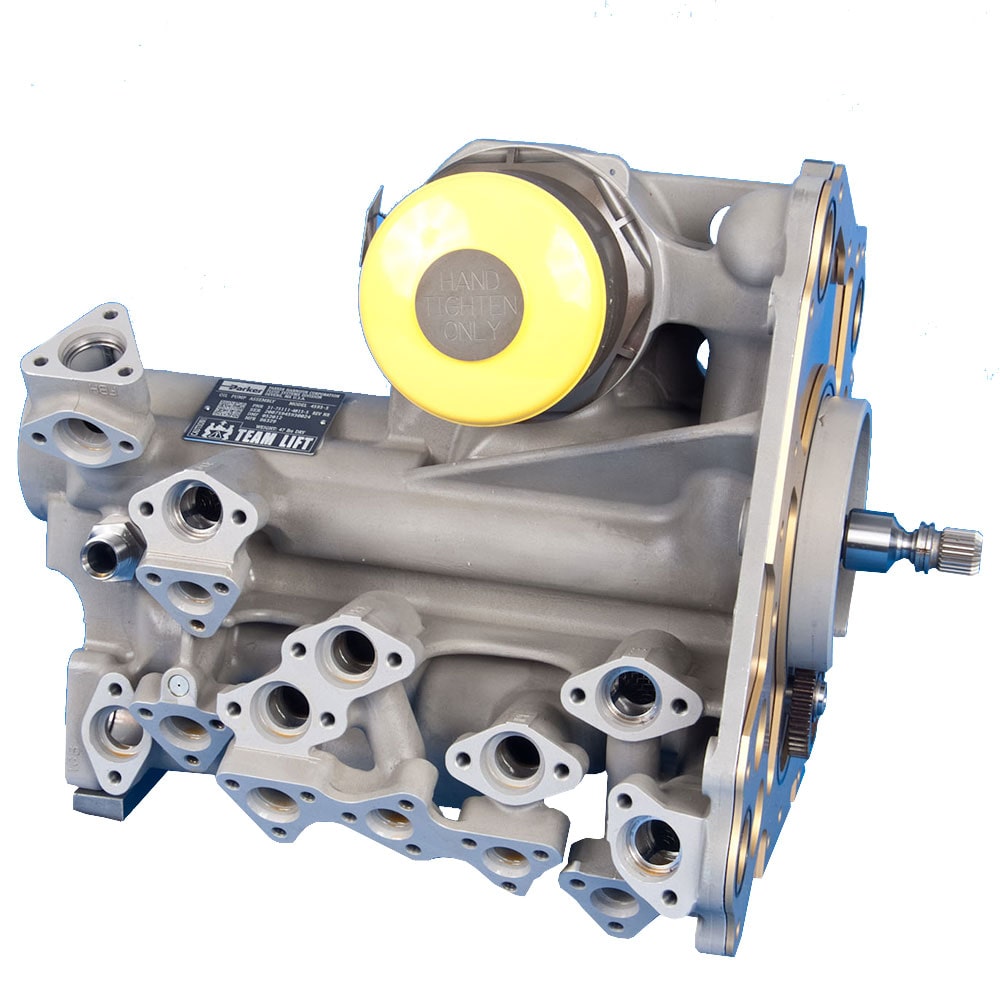

Gearbox-driven lubrication and scavenge pumps use gerotor technology to provide the customized, smallest, most compact, lightweight, reliable solution to distribute lubricating oil into main gas turbine engine and scavenge the oil back to the reservoir.
主体尺寸:Depends on design needs 结构材料:Gerotors and shafts are typically 8620 steel, housings are typically 6061 aluminum 最大运行压力:Depends on design needs

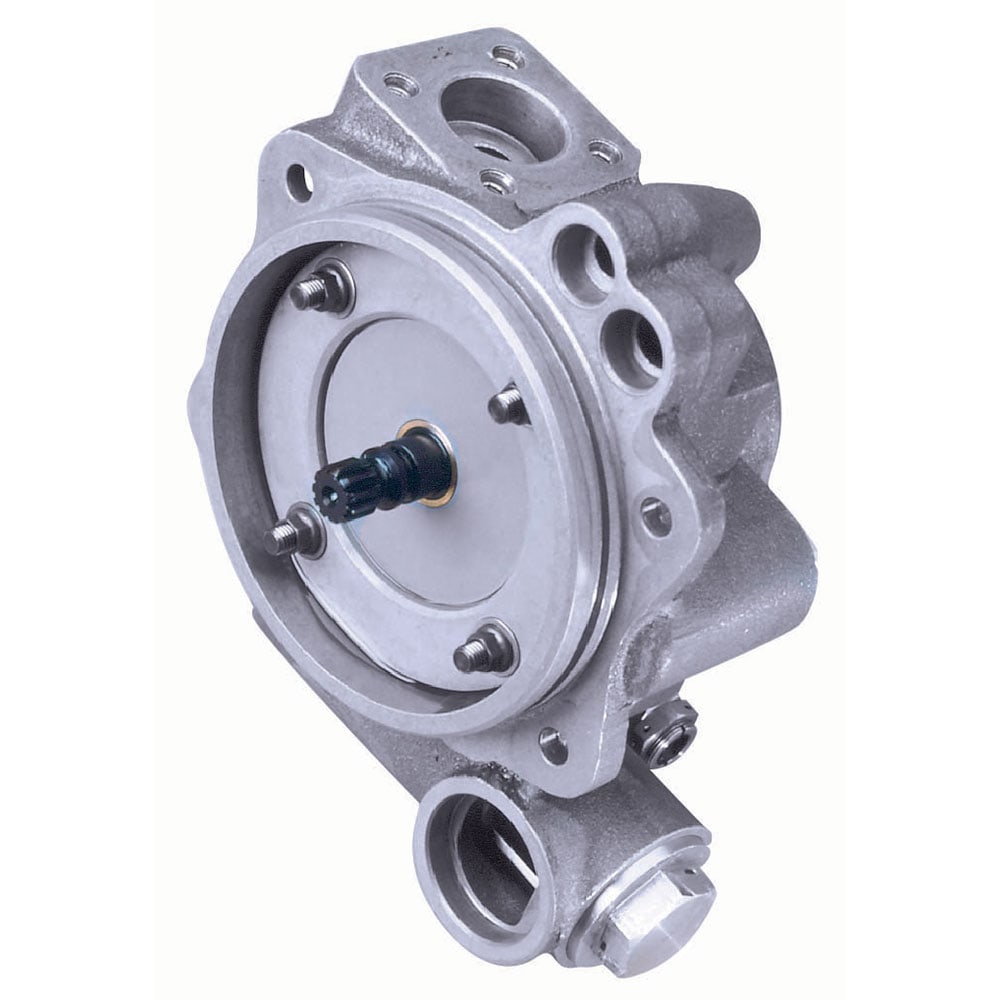

Gearbox-driven lubrication pumps use gerotor technology to provide customized smallest, most compact, lightweight, reliable solution to distribute lubricating oil into main gas turbine engine.
主体尺寸:Designed to meet your needs 结构材料:Gerotors and shafts are typically 8620 Steel Housings are typically 6061 aluminum, Designed to meet your needs 最大运行压力:1 to 11 unique flow sections Designed to meet your needs

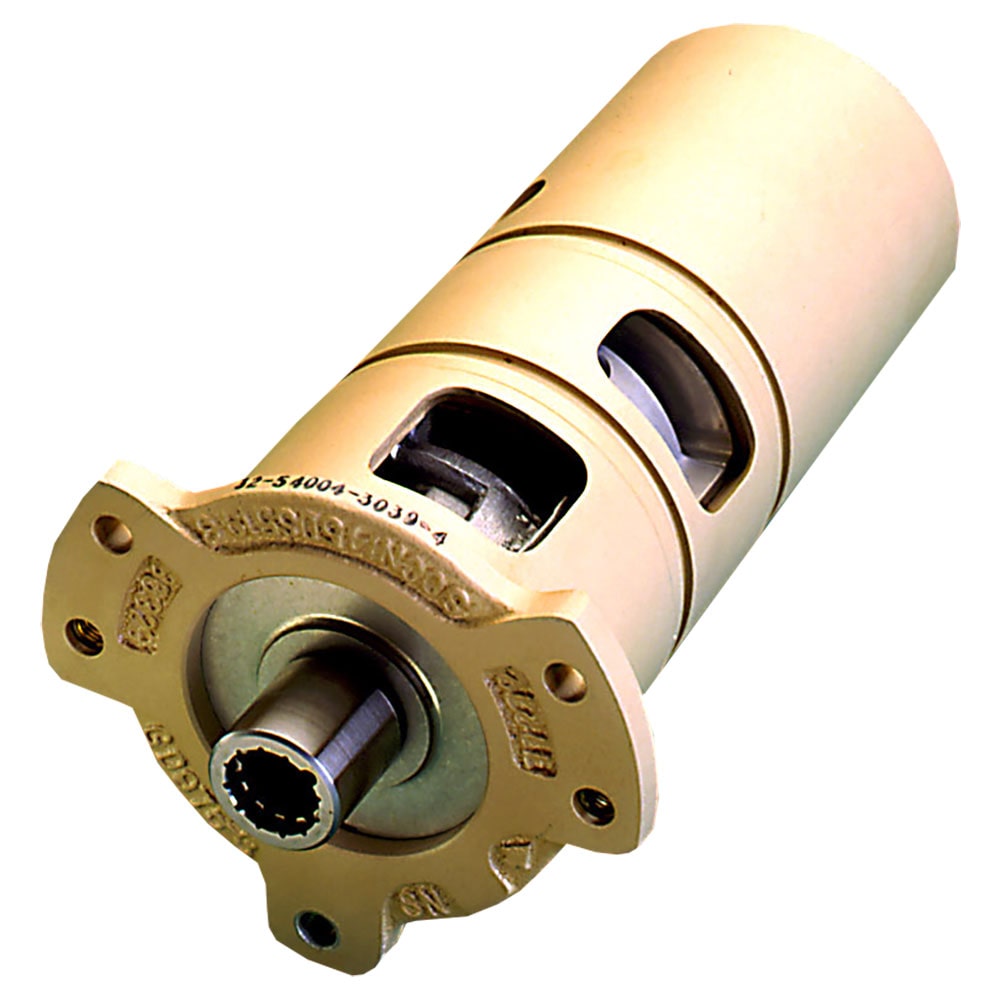

Gearbox-driven scavenge pumps use gerotor technology to provide customized, smallest, most compact, lightweight, reliable solution to scavenge lubricating oil from the main gas turbine engine back to the reservoir.
主体尺寸:Depends on design needs 结构材料:Gerotors and shafts are typically 8620 steel, housings are typically 6061 aluminum 最大运行压力:Depends on design needs

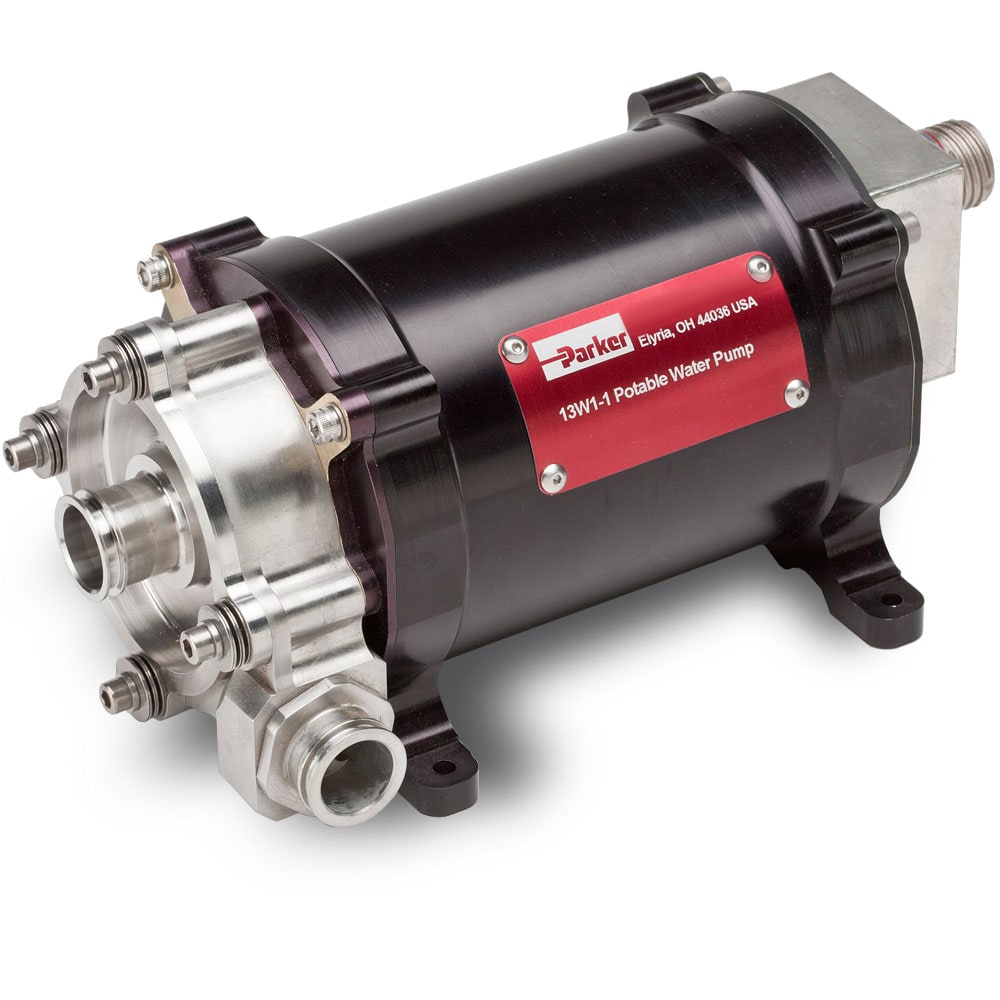

Parker Aerospace in-line potable water pump supplies up to six GPM flow at 18 psi. Equipped with EMI filtering, sensor-less control and locked rotor protection software, and discrete output signals for high-current, high-temperature, and rotor rotation.

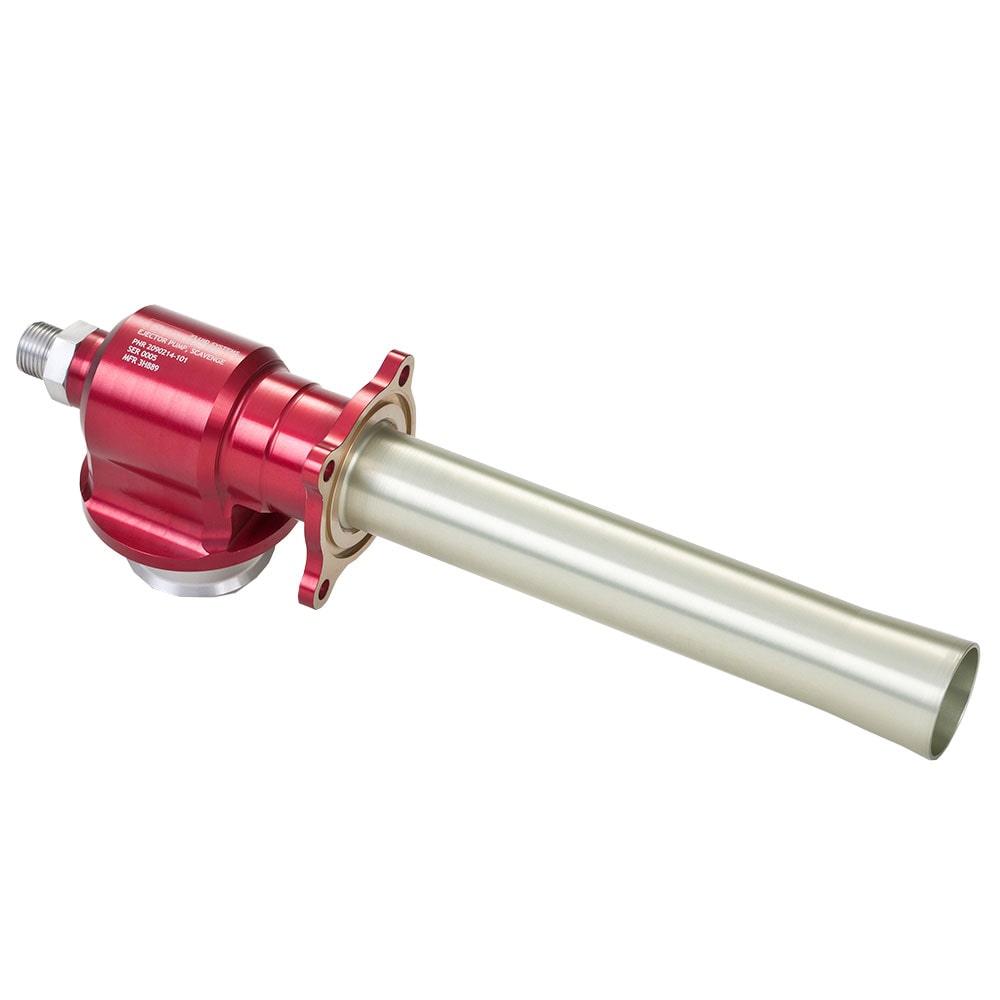

The scavenge ejector pumps are hydro-mechanical venturi pumps, with no moving parts, that transfer fuel from the wing tanks to the collector bays, using the engine’s motive flow.
重量:1.17 (Max) lbs 工作温度:'-58° to +131 °F 最高环境温度:'-67° to +185 °F
