PRODUCT SERIES

航空软管、硬管和管路组产品系列

包含当前分类及其下级分类中的系列,同一系列合并展示。

7 个系列

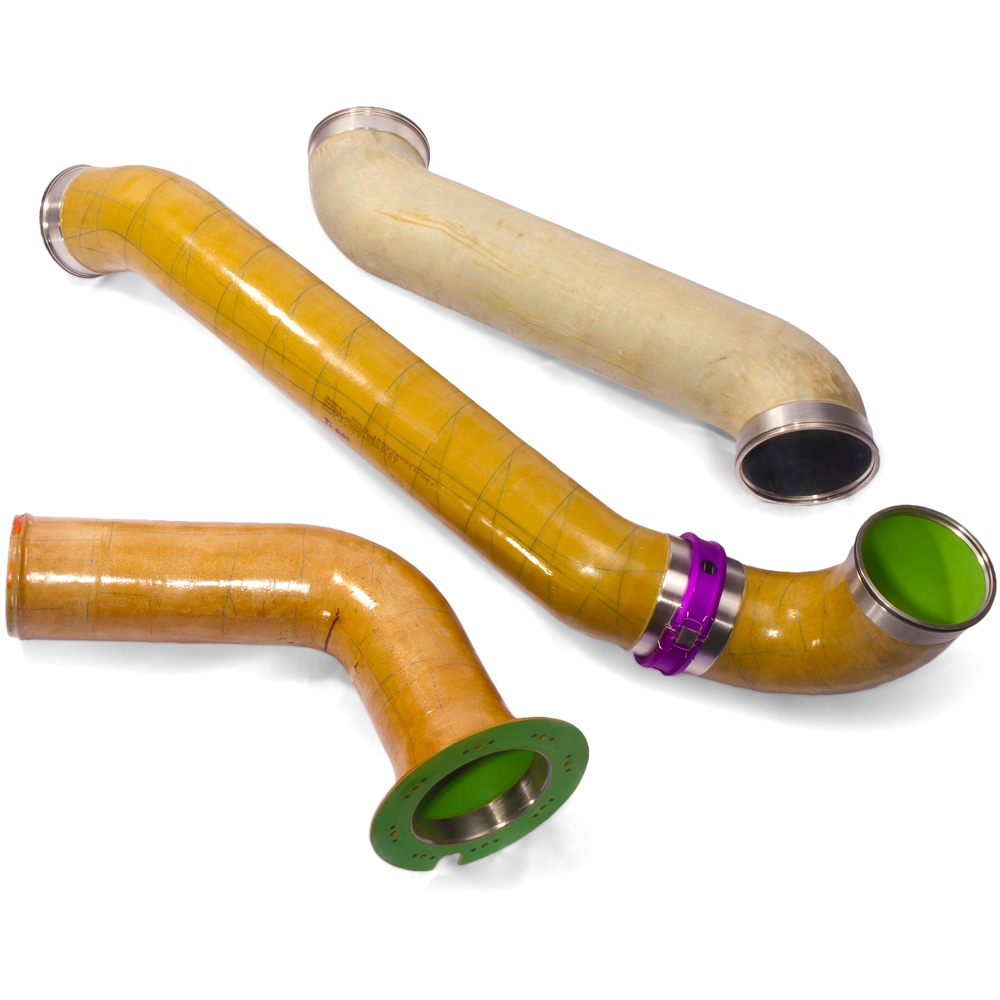

Aircraft Waste System Composite Ducting
航空航天航空硬管组件

Aircraft Waste System Composite Ducting

Parker Aerospace composite ducting is fitted between the on-board waste collection tank and the ground servicing panel, allowing smooth flow of the tank contents overboard to the ground servicing receptacle.

工作压力15 可承受压力22.5 负压-13 psi

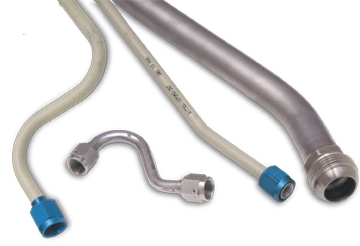

Bent Tube Assembly
航空航天航空硬管组件

Bent Tube Assembly

A bent tube assembly is a fluid conveyance (skydrol and other hydraulic fluid, oil, fuel, and air) custom designed, specifically bent for the engine or airframe where it is installed.

结构材料Corrosion resistant stainless (CRES), titanium, high nickel (Inconel 625 or 718) 最大运行压力Can go as high as 5000 psi (would require welded fittings)

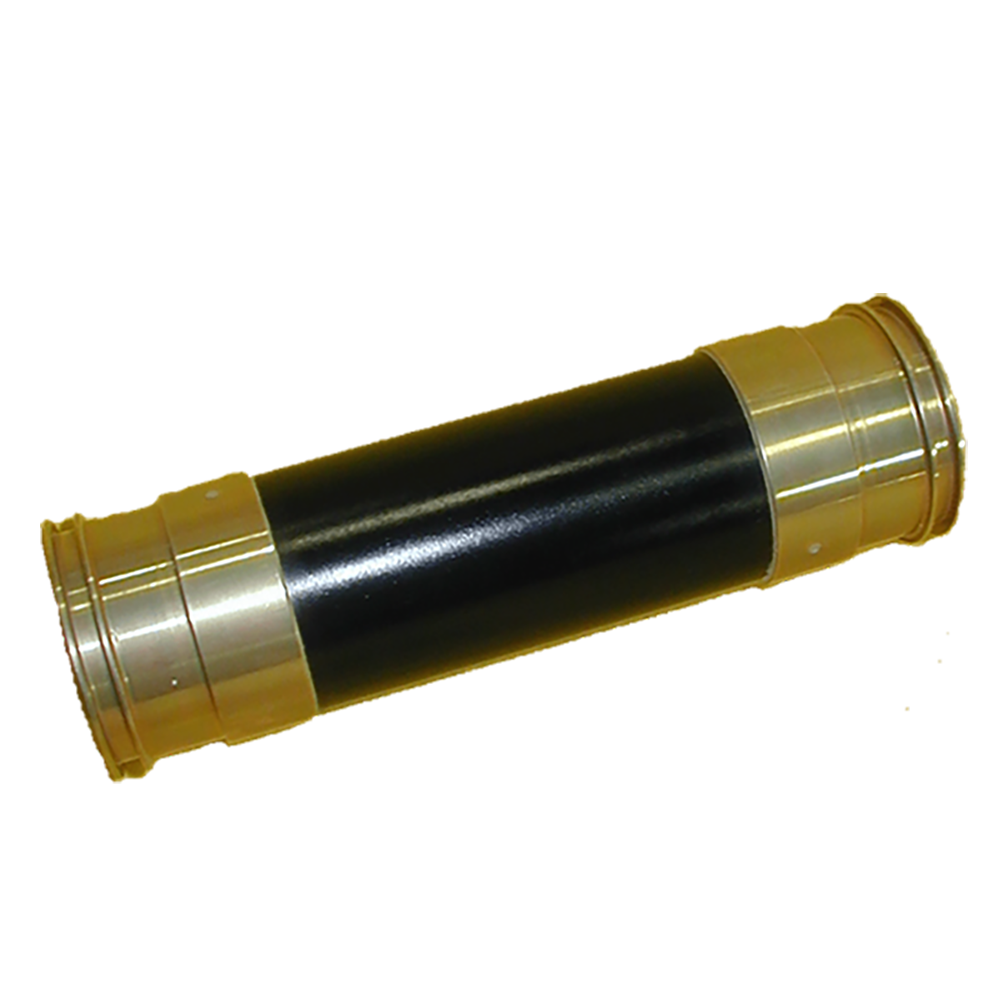

Static dissipating tubes
航空航天航空硬管组件

Static dissipating tubes

Installed in-line with the fuel lines and fuel vents of an aircraft, these tubes are designed to slowly dispel the static charge from a lightning strike, which protects the fuel lines and the rest of the fuel system from possible combustion.

工作温度-84 to 200 °F 与流体类型共同使用JP-4, JP-5, JP-8 and test fluids conforming to ASTM D471 Ty I and III, Mil-PRF-680 and Mil-PRF- 7024 额定压力Operating 120, Proof 180, Burst 240 psig

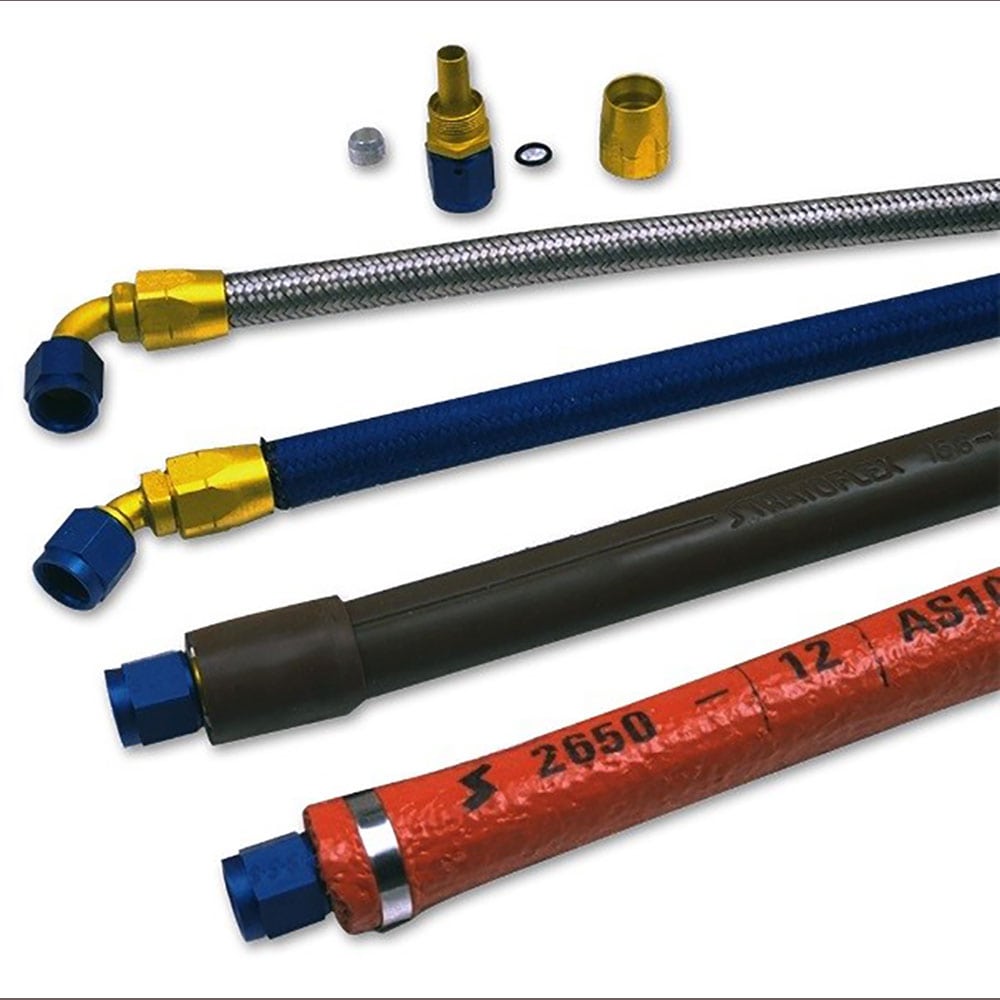

Complex Tube and Hose Assemblies
航空航天航空软管组件

Complex Tube and Hose Assemblies

High-quality versatile metal tube and flexible hose combination assemblies designed for reliable performance in aerospace fuel, oil, and hydraulic applications.

最大运行压力5,080 psi 结构材料Aluminum, CRES, titanium, or nickel alloys

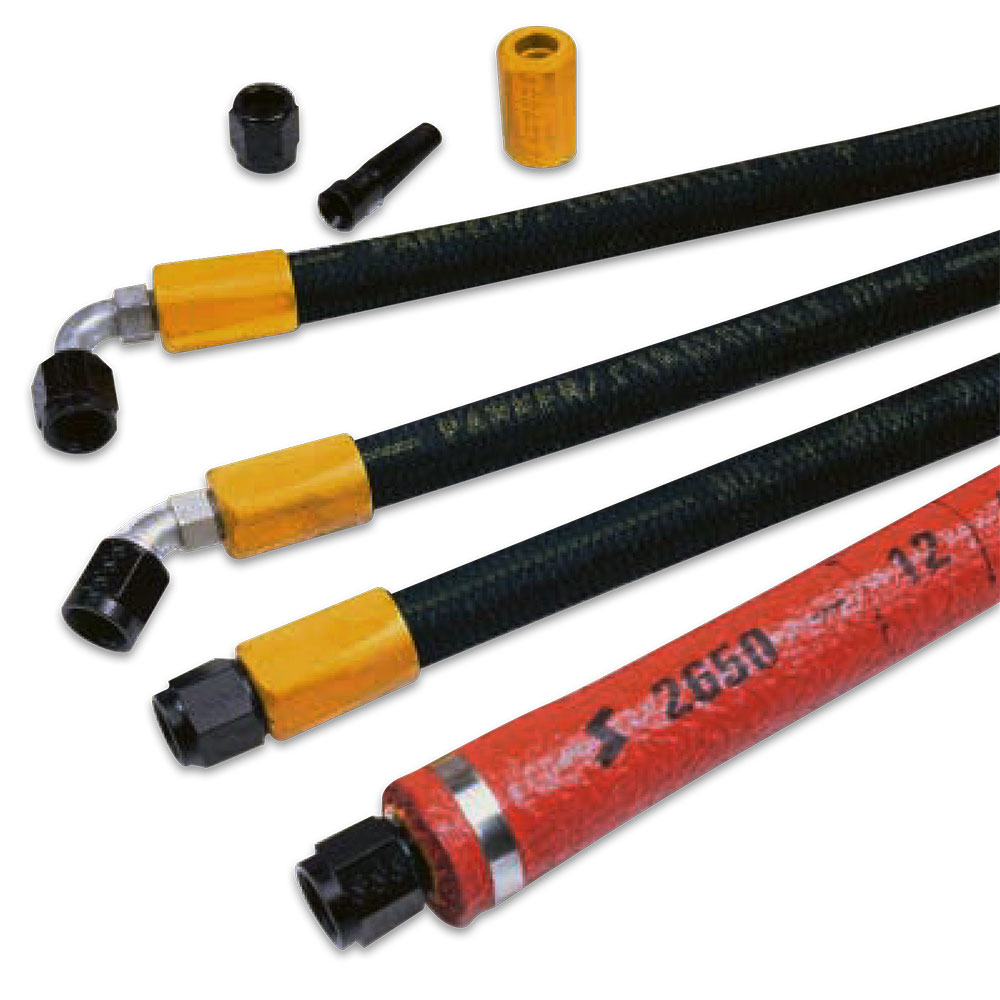

Elastomeric Hose Assemblies
航空航天航空软管组件

Elastomeric Hose Assemblies

Parker Aerospace elastomeric hose assemblies are designed for reliable fuel, oil, and hydraulic fluid conveyance in medium- to high-pressure aerospace systems. Several hose variations are available to meet specific applications.

符合规格Each hose assembly meets industry specification based on it's configuration., C53a Type A, C75 Type I-A-P, C53a Type A, C75 Type I-B-P, C53, C53a Type A, C75 Type I/II-A-S/P, NA 内径Ranging from .125 up to 3 inch 最大运行压力Ranging from 150 up to 3,000 psi

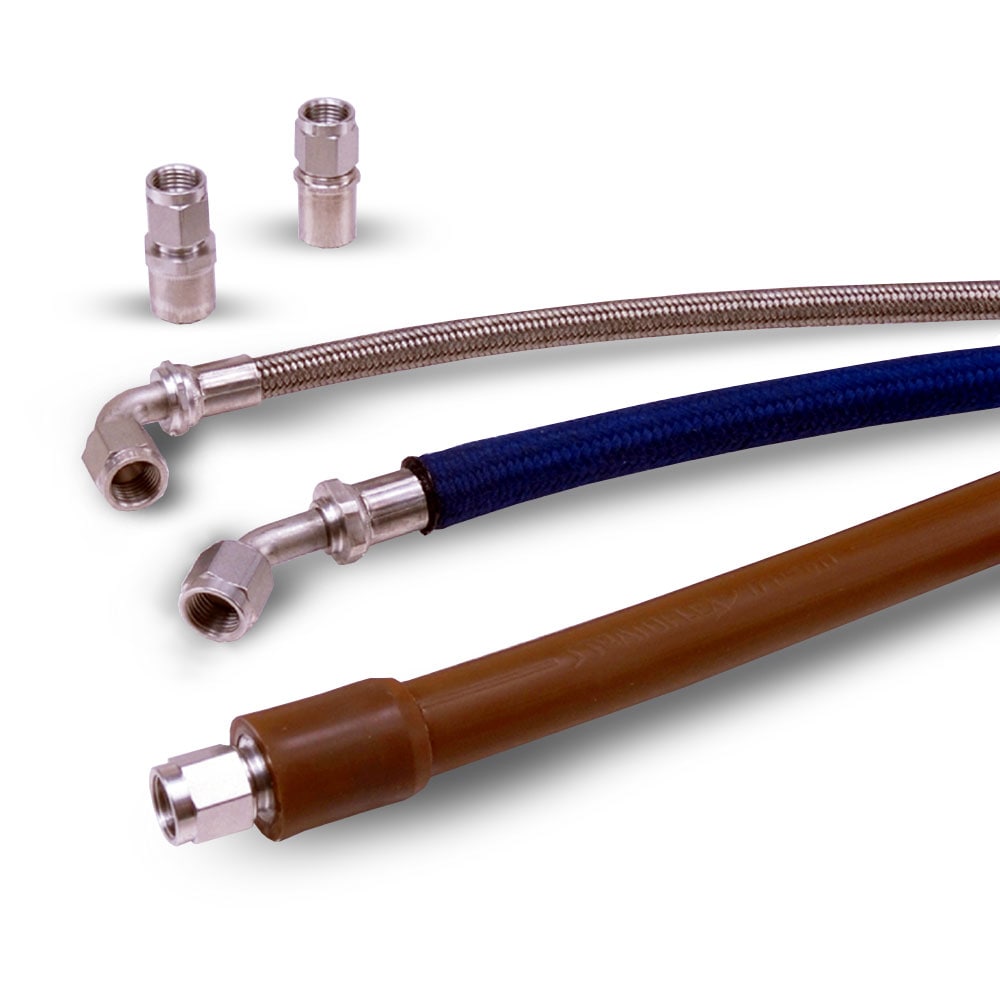

PTFE Hose Assemblies
航空航天航空软管组件

PTFE Hose Assemblies

Parker Aerospace’s medium- and high-pressure PTFE hose assemblies are designed for reliable fuel, oil, and hydraulic fluid conveyance in even the most demanding aerospace systems.

符合规格Each hose assembly meets industry specification based on it's configuration., Choose a hose size in the part finder to determine the hose certifications. 最高流体温度Up to 450 °F 软管类型Various hose types

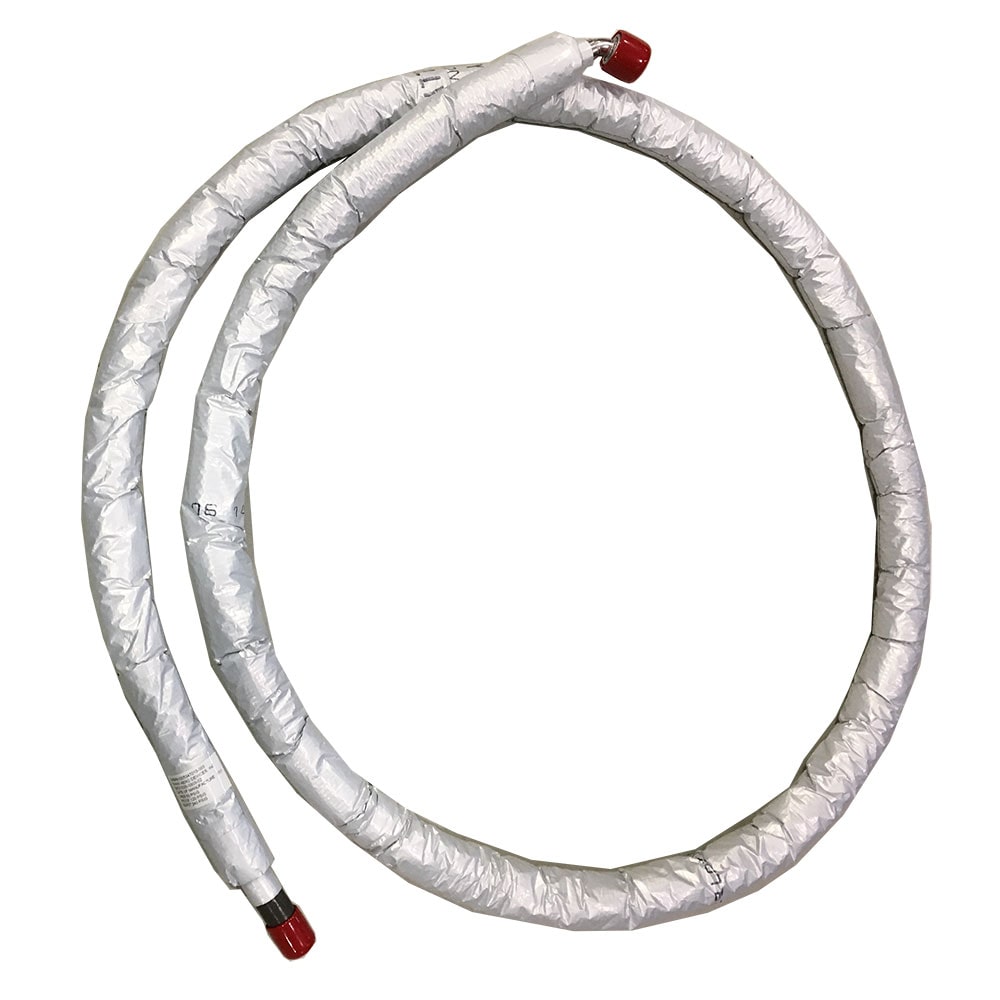

Water and Waste Supply Hoses
航空航天航空软管组件

Water and Waste Supply Hoses

Hoses carry fresh, clean water from the potable water tank to usage areas like the aircraft galley or to replenish the water tank. They can also be custom designed to carry waste water away. Field-proven, custom designs fit the specific application.

最高运行温度-65 to 160 °F 额定压力Operating pressure 125 psi Proof pressure 250 psi psi 尺寸Typically 1 inch OD, but range from 1/2 to 2 inch ID hoses. As short as 12 inches and up to several feet long. Designed to meet requirements
