明确应用工况
整理介质、压力、温度、速度与使用环境等基础条件。
产品系列

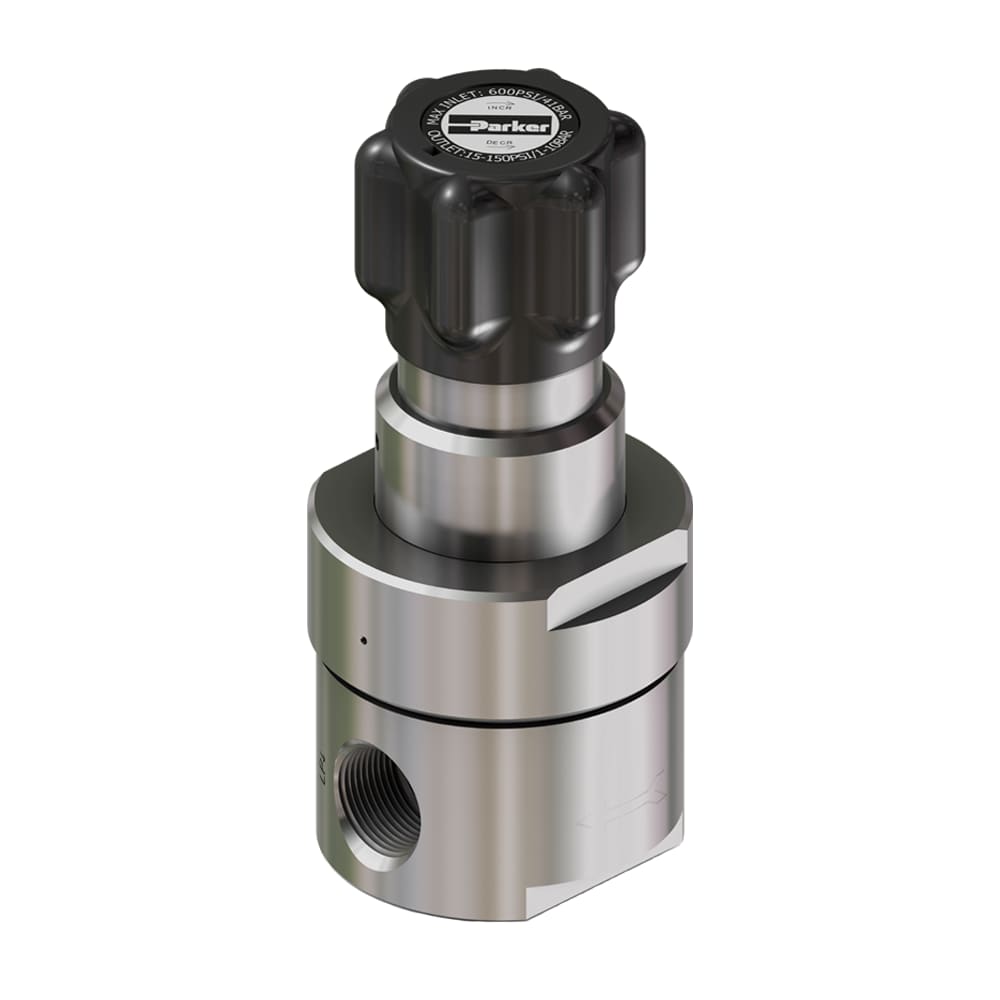

UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series
The FR1300 is an ultra-high purity regulator for gas delivery in semiconductor and other clean processes. Capable of high flow, it is an excellent choice for cylinder or point of use bulk and specialty gas applications
SERIES OVERVIEW
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series
The FR1300 is an ultra-high purity regulator for gas delivery in semiconductor and other clean processes. Capable of high flow, it is an excellent choice for cylinder or point of use bulk and specialty gas applications
- 系列编号
- —
- 所属技术
- 仪器仪表
- 产品记录
- 21
- 图片与资料
- 12
系列介绍
产品能力与选型说明
$17
SELECTION PATH
从工况到型号，一步步缩小选择范围
结合现场参数、安装边界和交付要求，确认适合的系列与型号。
确认安装边界
核对空间、接口、连接方式与现有系统的兼容性。
匹配技术参数
结合性能、材料、寿命与合规要求进行综合比较。
确认型号与交付
核对完整型号、数量、资料和交期，形成可执行方案。
技术参数
关键规格一览
流量系数1.2 Cv
最大入口额定压力600 psig
出口额定压力1 to 30 psig, 5 to 60 psig, 10 to 100 psig, 15 to 150 psig
阀座材料PCTFE
端口数量2
端口类型1/4" Face Seal, 1/2" Face Seal, 3/4" Face Seal
端口连接Male, Male, Female, Female
阀体材料316L Stainless Steel
隔膜材料Hastelloy C-22®
表面处理Passivated & Electropolished
阀芯材料316L Stainless Steel
阀座固定材料316L Stainless Steel
内部泄漏率Bubble Tight
外部泄漏率2 x 10-10 scc/sec He
可承受压力900 psig
爆破压力1800 psig
具体产品
型号与订货号
共 21 条产品记录。独立型号尚未确认的产品可按订货号查询。
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FR1310HS12K2PFS12FF独立型号待确认订货号：FR1310HS12K2PFS12FF零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FR1310HS12K2PFS8FF独立型号待确认订货号：FR1310HS12K2PFS8FF零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FR1310HS12K2PFS8MM独立型号待确认订货号：FR1310HS12K2PFS8MM零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FR1310HS12K3PXFS8FIF独立型号待确认订货号：FR1310HS12K3PXFS8FIF零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FR1310HS12K3PXFS8FMF独立型号待确认订货号：FR1310HS12K3PXFS8FMF零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FR1315HS12K2PFS12FF独立型号待确认订货号：FR1315HS12K2PFS12FF零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FR1315HS12K2PFS12FF40766独立型号待确认订货号：FR1315HS12K2PFS12FF40766零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FR1315HS12K2PFS8FF独立型号待确认订货号：FR1315HS12K2PFS8FF零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FR1315HS12K2PFS8FF40766独立型号待确认订货号：FR1315HS12K2PFS8FF40766零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FR1315HS12K2PTS12独立型号待确认订货号：FR1315HS12K2PTS12零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FR1315HS12K2PTS8独立型号待确认订货号：FR1315HS12K2PTS8零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FR1315HS12K3P2FS8FIF独立型号待确认订货号：FR1315HS12K3P2FS8FIF零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FR1315HS12K3PXFS8FIF40766独立型号待确认订货号：FR1315HS12K3PXFS8FIF40766零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FR1315HS12K3PXFS8FMF独立型号待确认订货号：FR1315HS12K3PXFS8FMF零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FRN1315HS12K2P12T独立型号待确认订货号：FRN1315HS12K2P12T零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FRN1315HS12K2P8独立型号待确认订货号：FRN1315HS12K2P8零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FRN1315HS12K2P8T独立型号待确认订货号：FRN1315HS12K2P8T零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FRN1315HS12K3PVY12T独立型号待确认订货号：FRN1315HS12K3PVY12T零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FRN1315HS12K3PVY8T独立型号待确认订货号：FRN1315HS12K3PVY8T零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FRN1315HS12K4PBVY12T独立型号待确认订货号：FRN1315HS12K4PBVY12T零件号代用查看产品 →
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series · FRN1315HS12K4PBVY8T独立型号待确认订货号：FRN1315HS12K4PBVY8T零件号代用查看产品 →
产品资料
图片、文档与 CAD
共 12 项资料。已归档文件可直接打开；仅有官网入口的资料会标注“官网链接”。
技术文档 · 官网链接Process Analytical Guide:--4255-PA前往官网 ↗技术文档 · 官网链接Semiconductor Regulator Selection White Paper前往官网 ↗技术文档 · 本地资料Veriflo CAD File Locator Guide打开文件 ↗技术文档 · 官网链接Veriflo FR Series Regulators Introduction Video前往官网 ↗技术文档 · 官网链接Veriflo FR(N)1300 Flow Curve前往官网 ↗技术文档 · 官网链接Veriflo Pressure Regulators - Installation, Operation and Recycling Guide前往官网 ↗技术文档 · 本地资料Veriflo Product Selection & Operation Safety Guide打开文件 ↗技术文档 · 官网链接Veriflo Semiconductor Explainer Video前往官网 ↗技术文档 · 官网链接Veriflo--FR1300 Series - Technical Data Sheet前往官网 ↗技术文档 · 官网链接Veriflo--FRN1300 Series - Technical Data Sheet前往官网 ↗
产品图片 · 本地资料Thumbnail 1打开文件 ↗产品图片 · 本地资料官网分类系列图片打开文件 ↗
产品图片 · 本地资料Thumbnail 1打开文件 ↗产品图片 · 本地资料官网分类系列图片打开文件 ↗工程资源
样本、CAD 与选型支持
下载已发布资料，或联系应用工程师获取完整配置建议。
UHP Single Stage, High Flow, Pressure Reducing Regulator - FR1300 Series
