PRODUCT SERIES

电子涂层产品系列

查看系列能力、可选型号和技术资料。

8 个系列
CoolTherm® EP-343 Thermally Conductive Epoxy Conformal Coating
密封技术电子涂层

CoolTherm® EP-343 Thermally Conductive Epoxy Conformal Coating

CoolTherm® EP-343 coating is a two-component, dielectric epoxy coating recommended for coating printed circuit boards, semiconductors & heat sink assemblies. It efficiently distributes heat from the circuits throughout the coated surface of the board.

动态粘度65 cP @ 77°F (25°C) (resin), 55 cP @ 77°F (25°C) (hardener), 55 cP @ 77°F (25°C) (mixed) Cure Time2 Hours @ 257°F (125°C) 体积电阻率1 x 10^16 ohm-cm @ 77°F (25°C)

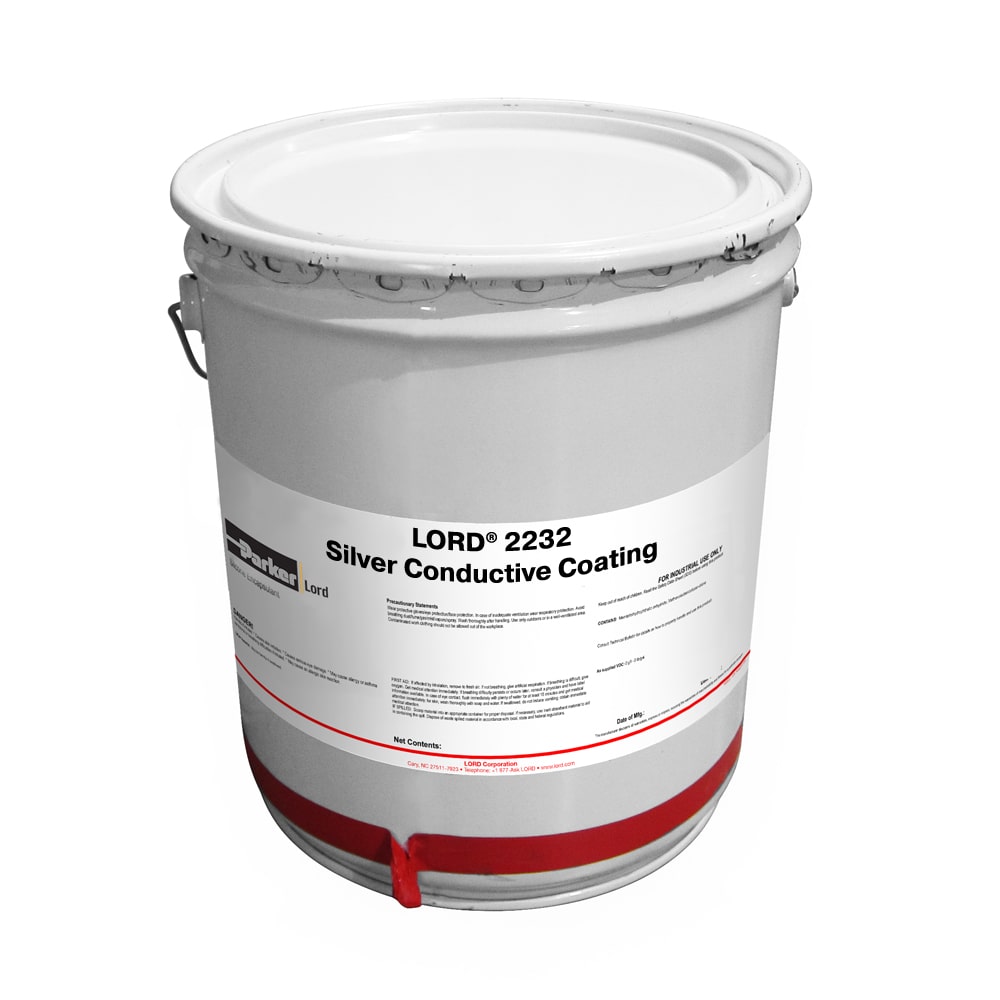

LORD® 2232 Silver Conductive Coating
密封技术电子涂层

LORD® 2232 Silver Conductive Coating

LORD® 2232 silver conductive coating is designed for use as a conductive electrode solder base for tantalum capacitors. It can also be used as general-purpose conductive coating for printed circuit board repair & electromagnetic shielding applications.

动态粘度425 cP @ 77°F (25°C) Cure Time10 min to Dry @ 176°F (80°C), 30 min to Cure @ 150°C 颜色Silver Liquid

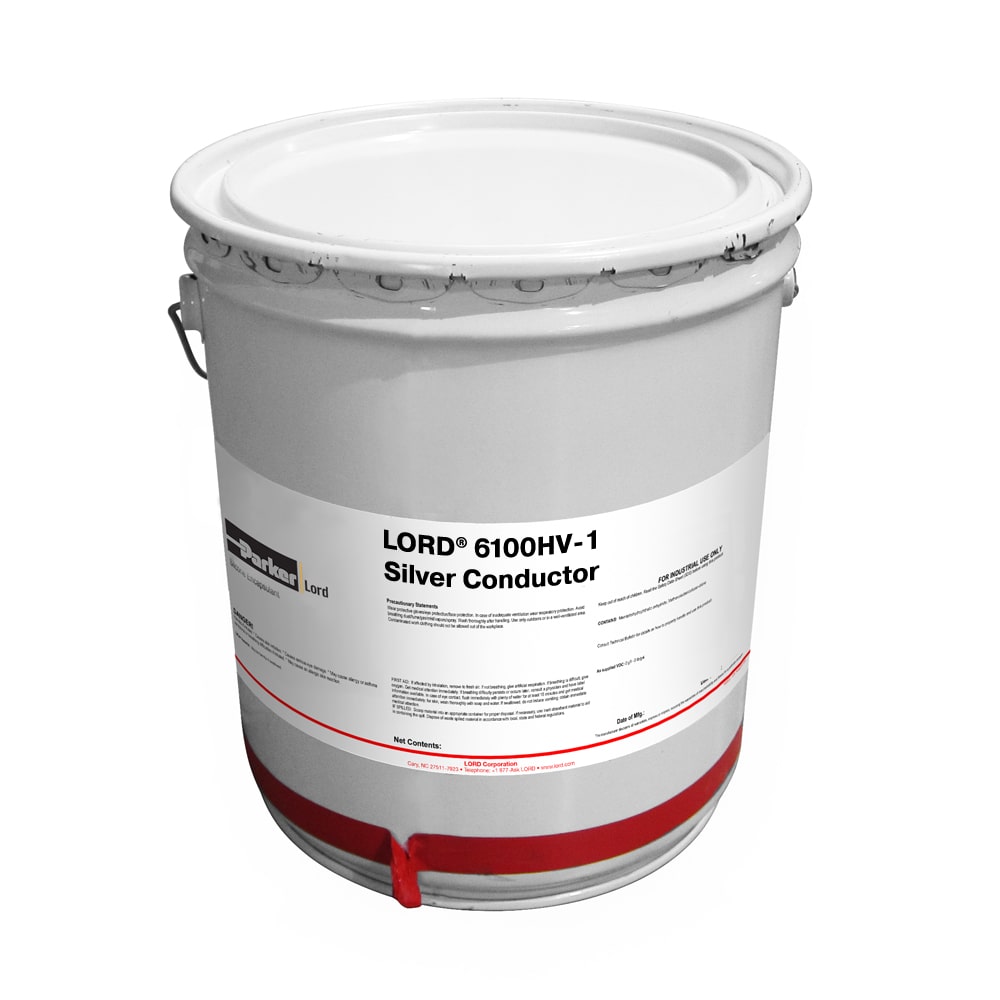

LORD® 6100HV-1 Silver Conductor
密封技术电子涂层

LORD® 6100HV-1 Silver Conductor

LORD® 6100HV-1 silver conductor is a one-component, thermosetting conductive epoxy designed primarily for surface mount attachment of electronic component devices. It is recommended for die attach and discrete component surface mount applications.

动态粘度60000 to 75000 cP @ 77°F (25°C) Cure Time30 to 60 min @ 302°F (150°C) 颜色Silver Paste

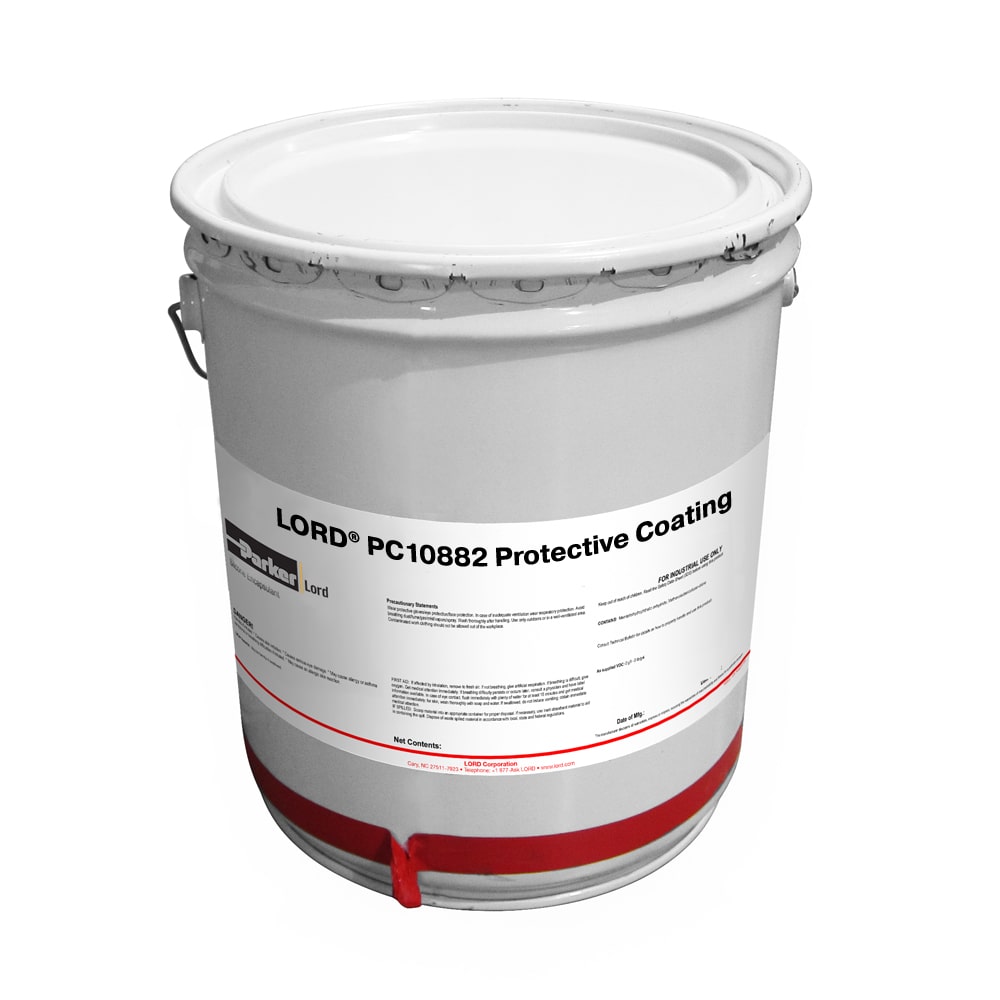

LORD® PC10882 Protective Coating
密封技术电子涂层

LORD® PC10882 Protective Coating

LORD® PC10882 protective coating is a mineral-filled, epoxy dielectric material designed for screen print application as a protective coating for trimmed resistors and general circuit protection.

动态粘度65000 to 85000 cP @ 77°F (25°C) Cure Time5 to 10 min to Dry @ 150°C, 30 min to Cure @ 245°C 颜色Dark Blue Paste
LORD® PC11159 Silver Conductive Coating
密封技术电子涂层

LORD® PC11159 Silver Conductive Coating

LORD® PC11159 silver conductive coating is a thermosetting epoxy coating used as conductive electrode for tantalum capacitors. Also used as general-purpose conductive paint for printed circuit board repair & electromagnetic shielding applications.

动态粘度600 to 700 cP @ 77°F (25°C) Cure Time30 min @ 392°F (200°C) 颜色Silver Paste
LORD® PC11325 Silver Conductive Coating
密封技术电子涂层

LORD® PC11325 Silver Conductive Coating

LORD® PC11325 silver conductive coating is a thermosetting epoxy coating used as conductive electrode for tantalum capacitors. Also used as general-purpose conductive paint for printed circuit board repair & electromagnetic shielding applications.

动态粘度500 to 600 cP @ 77°F (25°C) Cure Time30 min @ 392°F (200°C) 颜色Silver Liquid
LORD® PCC40514 Silver Conductive Coating
密封技术电子涂层

LORD® PCC40514 Silver Conductive Coating

LORD® PCC40514 silver conductive coating is a thermosetting epoxy coating used as conductive electrode for tantalum capacitors. Also used as general-purpose conductive paint for printed circuit board repair & electromagnetic shielding applications.

动态粘度900 to 1100 cP @ 77°F (25°C) Cure Time30 min @ 392°F (200°C) 颜色Silver Liquid
LORD® PCC40490 Silver Conductive Coating
密封技术电子涂层

LORD® PCC40490 Silver Conductive Coating

LORD® PCC40490 silver conductive coating is a thermosetting epoxy coating used as conductive electrode for tantalum capacitors. Also used as general-purpose conductive paint for printed circuit board repair & electromagnetic shielding applications.

动态粘度600 cP @ 77°F (25°C) Cure Time60 min @ 356°F (180°C) 颜色Silver Liquid
