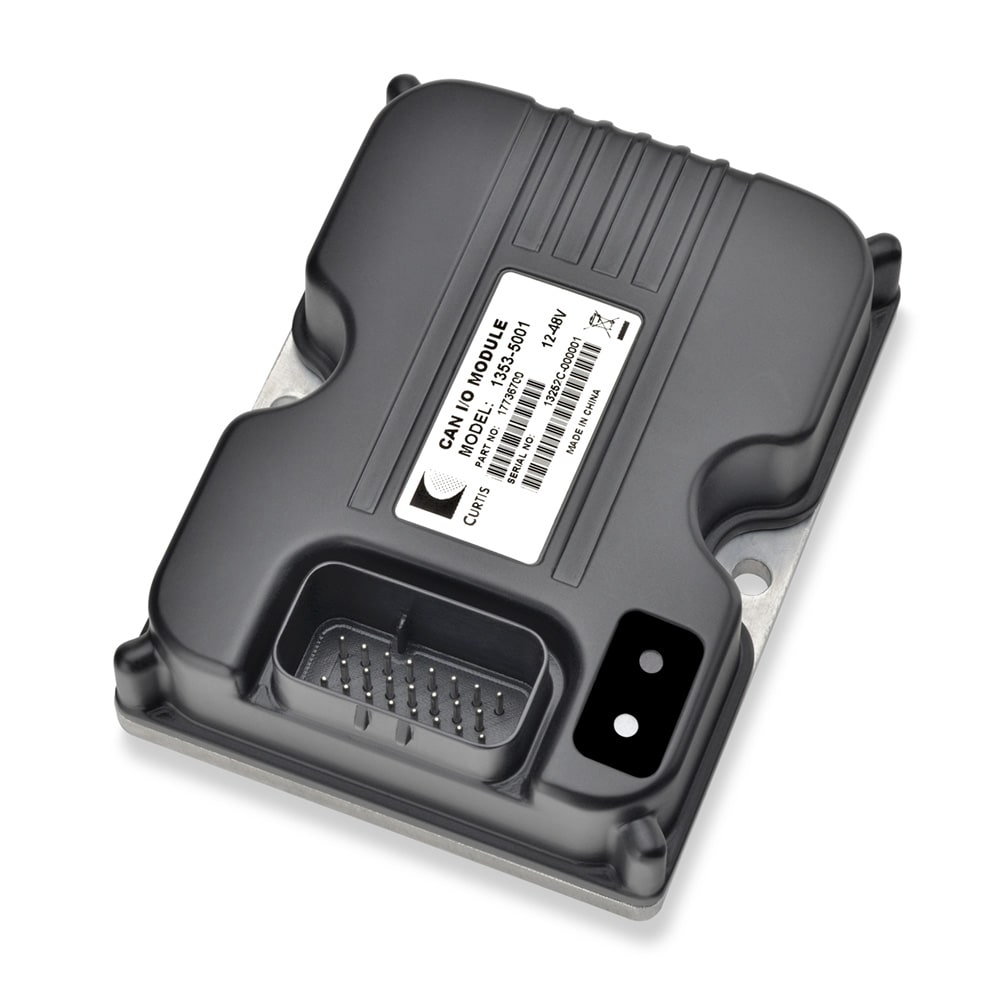

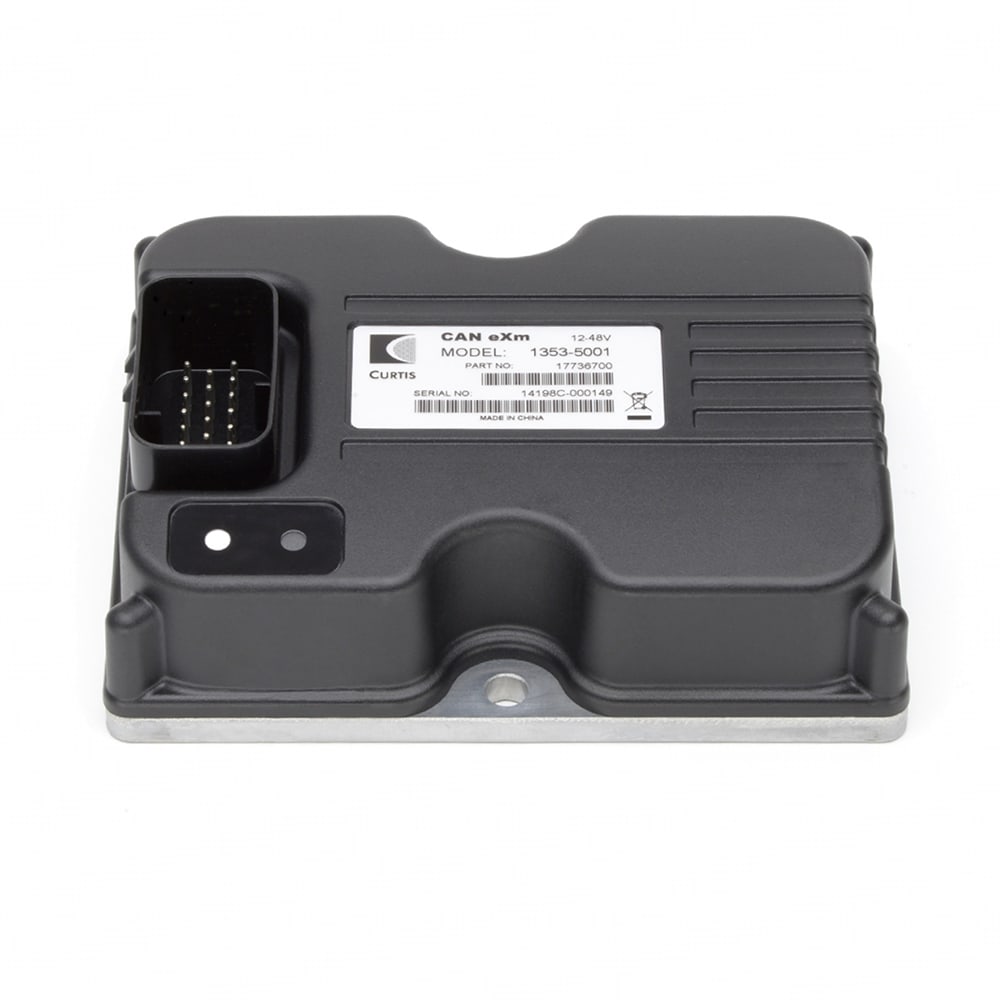

Curtis CAN I/O Expansion Module - 1353 eXm

CANopen communication for seamless system integration.

Fifteen multi-purpose configurable I/O pins.

Nine 3A high-frequency PWM proportional valve driver outputs.

Six analog inputs configurable for voltage or resistance measurement.

Support for up to two quadrature encoders.

Integrated +5V regulated and +12V unregulated power supplies.

Programmable dither for precise hydraulic valve positioning.

Constant current or constant voltage output modes.

Short circuit protection on all output drivers.

Built-in coil flyback diodes for inductive load protection.

Analog inputs configurable as digital inputs with programmable thresholds.

12-48V and 48-96V nominal supply options.

IP65 sealed housing with AMPSeal connector.

Material handling equipment

Compact construction equipment

Aerial work platforms

Airport ground support equipment (GSE)

Floor care and sweeper-scrubber machines

Electrified and hybrid off-highway vehicles

Lift, tilt, reach, and steering hydraulic control

Multi-valve proportional control systems

Position feedback and encoder integration

Sensor data acquisition

Auxiliary hydraulic functions

CAN-based vehicle system expansion

Electrified mobile hydraulic systems
