Curtis Brushless DC Motor Controller - 1212BL
The Curtis 1212BL motor controller delivers efficient BLDC motor control, combining smooth vehicle performance, flexible I/O, CANopen communication, and advanced diagnostics for pallet trucks, floorcare machines, and other low-power vehicles.
SERIES OVERVIEW
Curtis Brushless DC Motor Controller - 1212BL
The Curtis 1212BL motor controller delivers efficient BLDC motor control, combining smooth vehicle performance, flexible I/O, CANopen communication, and advanced diagnostics for pallet trucks, floorcare machines, and other low-power vehicles.
- 系列编号
- —
- 所属技术
- 机电技术
- 产品记录
- 1
- 图片与资料
- 5
系列介绍
产品能力与选型说明
Efficient control of brushless DC (BLDC) motors
Dual-microprocessor architecture with category 2 functional safety
Precise speed regulation for smooth vehicle performance
Boost Current feature for improved starting and obstacle-climbing performance
Flexible configurable I/O for vehicle functions and accessories
Integrated drivers for pump contactors, lower valves, and electromagnetic brakes
CANopen communication with support for Curtis displays and tiller heads
Lithium-ion battery system compatibility and BMS integration
CAN-based programming through the Curtis Integrated Toolkit (CIT)
Advanced diagnostics, fault logging, and status LED indication
Compact IP65-rated design for demanding environments
Material handling
Warehouse automation
Floorcare equipment
Industrial vehicles
Utility vehicles
Specialty electric vehicles
Class III pallet trucks
Walkie pallet trucks
Pedestrian-operated material handling equipment
Sweeper scrubbers
Floor cleaning machines
Low-power electric industrial vehicles
SELECTION PATH
从工况到型号，一步步缩小选择范围
结合现场参数、安装边界和交付要求，确认适合的系列与型号。
确认安装边界
核对空间、接口、连接方式与现有系统的兼容性。
匹配技术参数
结合性能、材料、寿命与合规要求进行综合比较。
确认型号与交付
核对完整型号、数量、资料和交期，形成可执行方案。
技术参数
关键规格一览
分部Electronic Controls and Motion Division
品牌Curtis
输入电压36-48 V
输出电流额定值70 Arms
防护等级IP65
符合规格ISO 13849-1; EN 1175; EN12895
电机类型Brushless DC (BLDC)
外框尺寸90 x 150 x 44 mm
具体产品
型号与订货号
共 1 条产品记录。独立型号尚未确认的产品可按订货号查询。
产品资料
图片、文档与 CAD
共 5 项资料。已归档文件可直接打开；仅有官网入口的资料会标注“官网链接”。

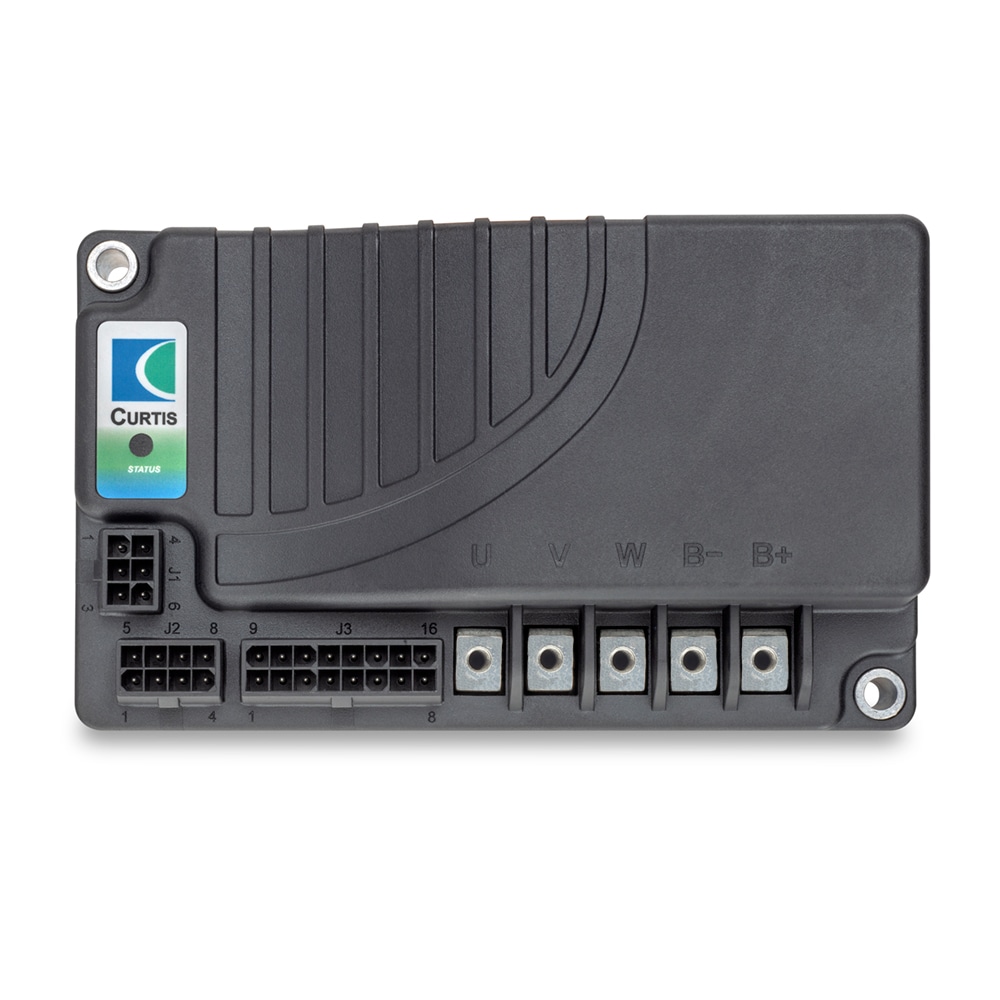

产品图片 · 本地资料Thumbnail 1

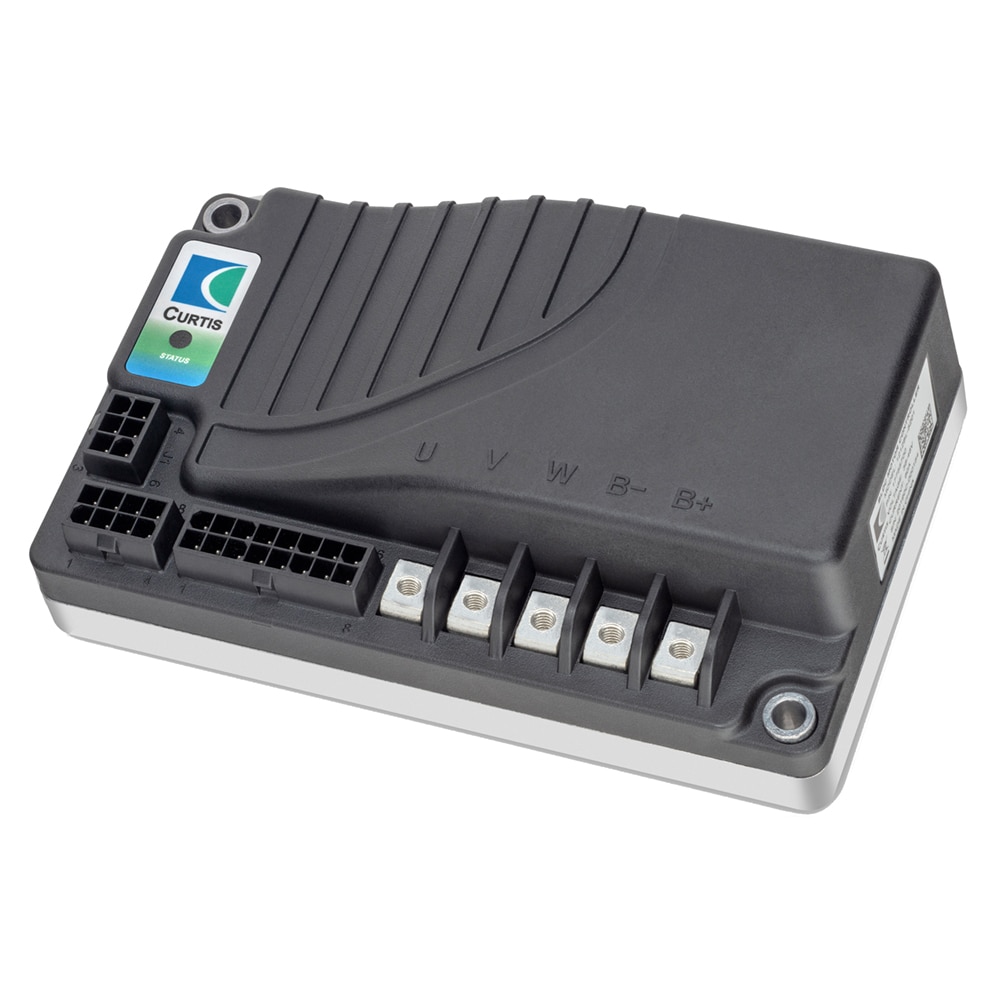

产品图片 · 本地资料Thumbnail 2工程资源
