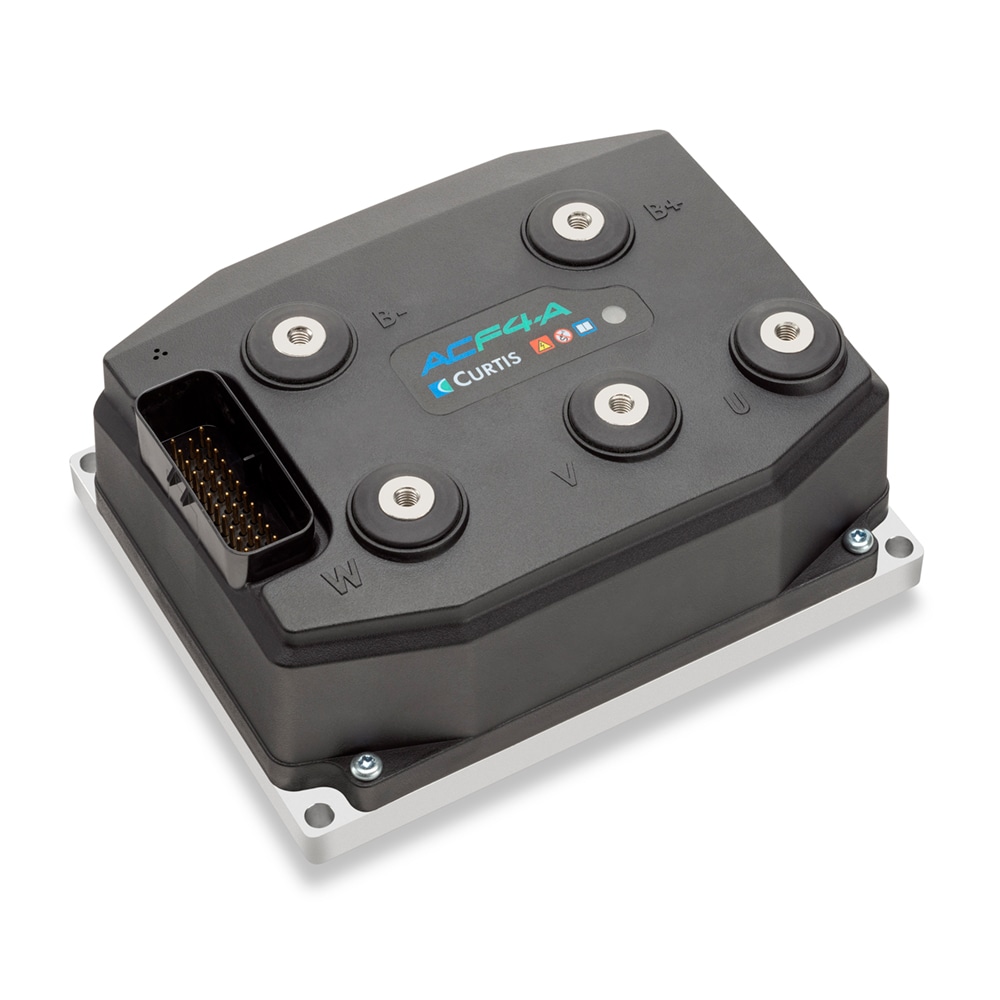

Curtis AC Motor Controller - AC F4-A
The Curtis AC F4-A is a compact AC motor controller delivering precise speed and torque control for induction, PMAC, and BLDC motors, designed for electric traction and hydraulic pump applications in off-highway and industrial vehicles.
SERIES OVERVIEW
Curtis AC Motor Controller - AC F4-A
The Curtis AC F4-A is a compact AC motor controller delivering precise speed and torque control for induction, PMAC, and BLDC motors, designed for electric traction and hydraulic pump applications in off-highway and industrial vehicles.
- 系列编号
- —
- 所属技术
- 机电技术
- 产品记录
- 14
- 图片与资料
- 4
系列介绍
产品能力与选型说明
Field-oriented motor control: Delivers maximum torque, smooth response, and high efficiency.
Supports induction, PMAC, and BLDC motors: Broad motor compatibility reduces design constraints.
Dual ARM Cortex microprocessors: Enables fast control and supports functional safety architectures.
Integrated Vehicle Control Language (VCL): Combines motor and vehicle control in a single device.
Wide operating voltage range: Supports multiple battery chemistries and vehicle platforms.
Advanced CAN capabilities: J1939 and CANopen support for seamless system integration.
Flexible, high-density I/O: Supports traction, hydraulic, and auxiliary functions.
Motor auto-characterization: Simplifies commissioning and motor pairing.
Rugged IP67 housing: Proven reliability in harsh off-highway and industrial environments.
Global compliance support: Designed to meet functional safety, EMC, and UL requirements.
Material handling and warehouse equipment
Construction and compact construction equipment
Airport ground support equipment (GSE)
Mobile elevating work platforms (MEWPs)
Turf care and grounds maintenance equipment
Golf
Industrial electric and hybrid vehicles
Electric forklifts and warehouse trucks
Traction drives for compact construction equipment
Hydraulic pump and auxiliary motor control
Airport baggage tractors and support vehicles
Turf and grounds maintenance equipment
Utility vehicles
Golf cars
SELECTION PATH
从工况到型号，一步步缩小选择范围
结合现场参数、安装边界和交付要求，确认适合的系列与型号。
确认安装边界
核对空间、接口、连接方式与现有系统的兼容性。
匹配技术参数
结合性能、材料、寿命与合规要求进行综合比较。
确认型号与交付
核对完整型号、数量、资料和交期，形成可执行方案。
技术参数
关键规格一览
品牌Curtis
产品序列F-Series
输入电压24 to 96 VDC
输出电流额定值500 Arms
工作温度'-40 to 95 °C
存储温度'-40 to 50 °C
防护等级IP67
频次599 Hz
符合规格EN ISO 13849-1:2015, EN 1175:2020, UL583/cUL583
电机类型AC induction, PMAC, BLDC
外框尺寸180 x 140 x 75 mm
通讯接口CANopen, CAN (J1939), VCL
