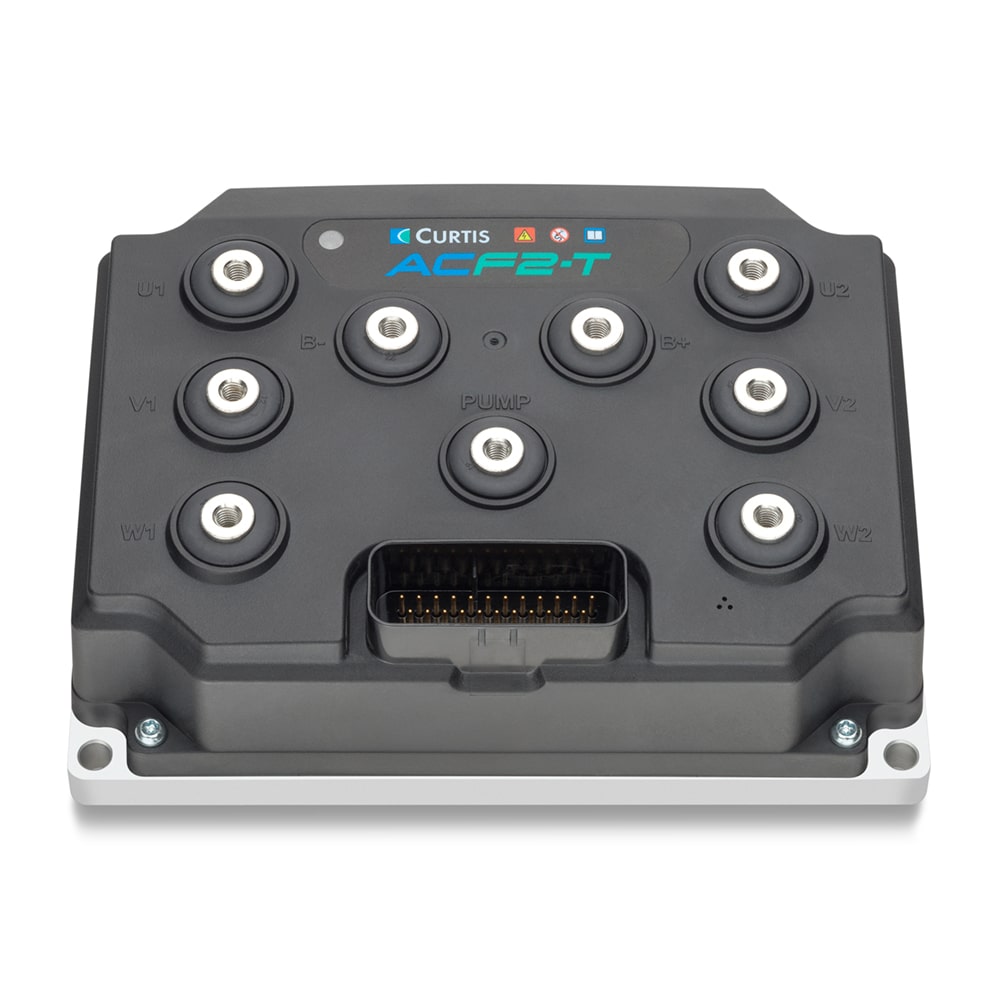

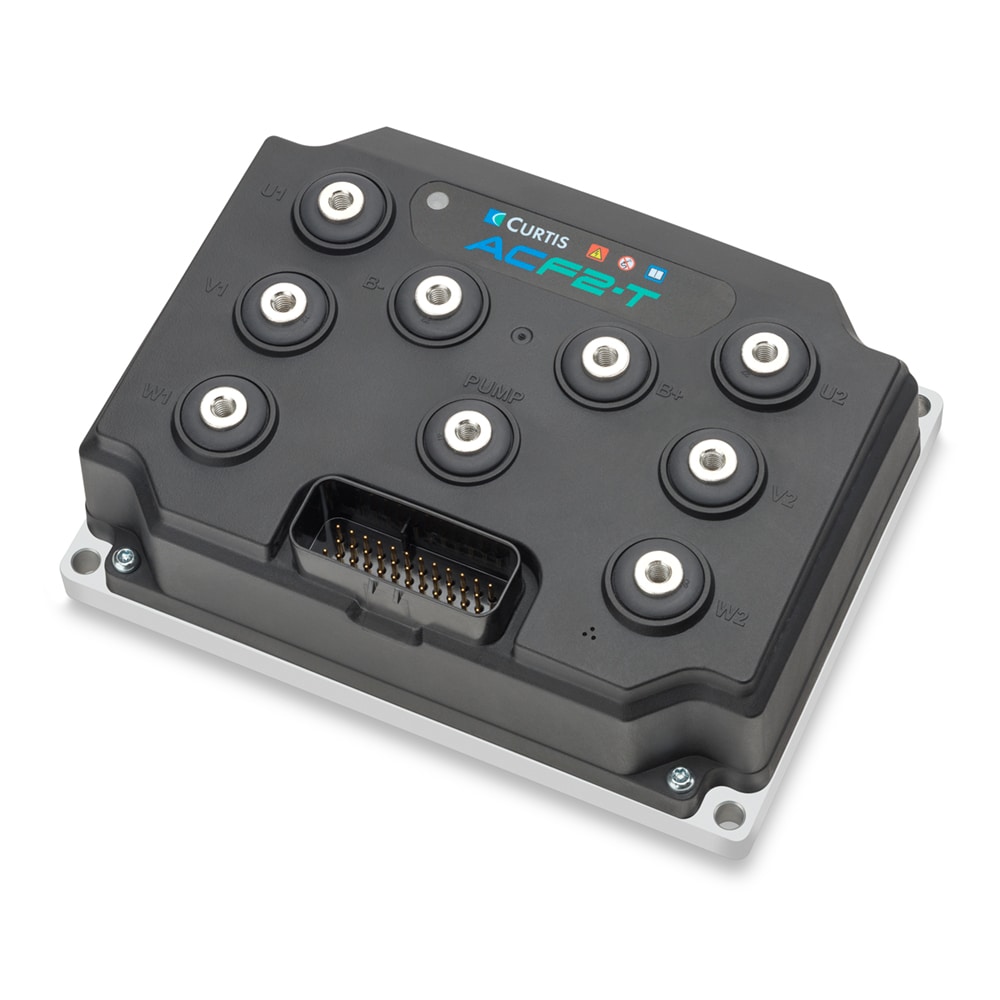

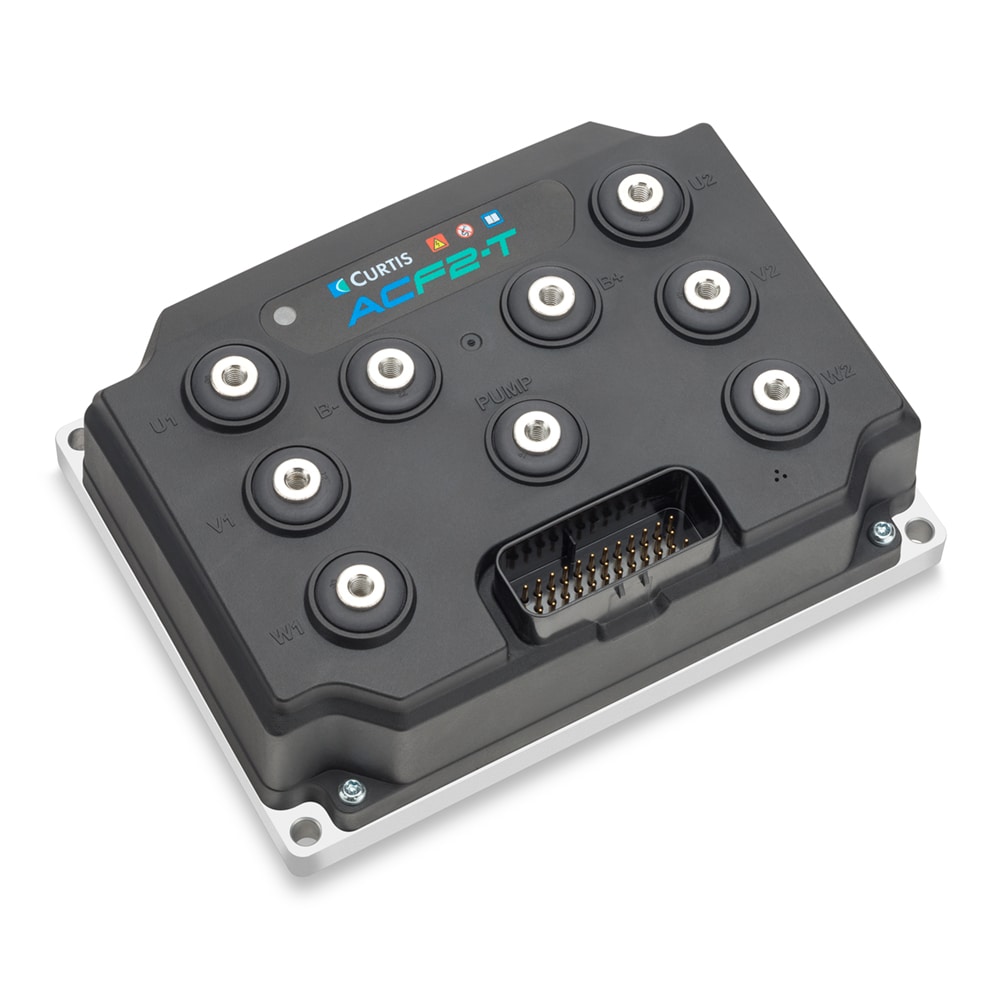

Curtis AC Motor Controller - AC F2-T/D
The AC F2-T/D integrates dual AC traction motor control, with the AC F2-T adding DC hydraulic pump control. Designed for dual-drive electric vehicles, it simplifies system design while delivering efficient performance and advanced vehicle management.
SERIES OVERVIEW
Curtis AC Motor Controller - AC F2-T/D
The AC F2-T/D integrates dual AC traction motor control, with the AC F2-T adding DC hydraulic pump control. Designed for dual-drive electric vehicles, it simplifies system design while delivering efficient performance and advanced vehicle management.
- 系列编号
- —
- 所属技术
- 机电技术
- 产品记录
- 8
- 图片与资料
- 4
系列介绍
产品能力与选型说明
Dual AC traction motor control in a single compact controller
AC F2-T includes integrated DC hydraulic pump motor control
Independent control of two AC induction or PMAC motors
Field-oriented control for smooth, efficient vehicle performance
Dual ARM Cortex microprocessors with category 2 functional safety
Integrated Vehicle Control Language (VCL) reduces need for additional controllers
CANopen and J1939 communication support
Flexible, configurable I/O for vehicle integration
Advanced diagnostics, fault logging, and CAN-based programming
Rugged IP67 design for demanding mobile equipment applications
Mobile elevating work platforms (MEWP)
Construction equipment
Material handling and warehouse automation
Industrial vehicles
Ground support equipment (GSE)
Specialty electric vehicles
Scissor lifts
Vertical mast lifts
Articulated boom lifts
3-wheel electric counterbalance forklifts
Dual-drive electric vehicles
Electric industrial and utility vehicles
SELECTION PATH
从工况到型号，一步步缩小选择范围
结合现场参数、安装边界和交付要求，确认适合的系列与型号。
确认安装边界
核对空间、接口、连接方式与现有系统的兼容性。
匹配技术参数
结合性能、材料、寿命与合规要求进行综合比较。
确认型号与交付
核对完整型号、数量、资料和交期，形成可执行方案。
技术参数
关键规格一览
品牌Curtis
产品序列F-Series
输入电压24-48 V
输出电流额定值240 Arms, 280 Arms
工作温度–40 to 50 °C
防护等级IP67
频次10 kHz, 18 kHz
符合规格EN 12895, EN ISO 13849, EN 1175
电机类型AC Induction, PMAC, BLDC
外框尺寸206 x 150 x 70 mm
通讯接口CANopen
