产品系列
Curtis AC Motor Controller - AC F2-C
The Curtis AC F2-C combines AC traction and DC hydraulic pump control in a single compact controller, simplifying system integration while delivering efficient performance and advanced vehicle management for Class III electric pallet and stacker trucks.
SERIES OVERVIEW
Curtis AC Motor Controller - AC F2-C
The Curtis AC F2-C combines AC traction and DC hydraulic pump control in a single compact controller, simplifying system integration while delivering efficient performance and advanced vehicle management for Class III electric pallet and stacker trucks.
- 系列编号
- —
- 所属技术
- 机电技术
- 产品记录
- 6
- 图片与资料
- 4
系列介绍
产品能力与选型说明
Integrated AC traction motor and DC hydraulic pump control in a single controller
Field-oriented motor control for smooth, efficient performance
Dual ARM Cortex microprocessors with category 2 functional safety
Flexible, configurable I/O for simplified vehicle integration
Dual CAN ports with CANopen and J1939 compatibility
Integrated Vehicle Control Language (VCL) reduces need for additional controllers
High efficiency for improved battery utilization and runtime
Advanced diagnostics, fault logging, and CAN-based programming
Compact, rugged design with IP67 environmental protection
Compatible with Curtis Integrated Toolkit for development and service
Material handling and warehouse automation
Industrial vehicles
Ground support equipment (GSE)
Compact utility vehicles
Low-speed electric vehicles
Class III powered pallet trucks
Electric stacker trucks
Walkie pallet jacks
Pedestrian-operated material handling vehicles
Compact aerial work platforms
Battery-powered industrial vehicles
SELECTION PATH
从工况到型号，一步步缩小选择范围
结合现场参数、安装边界和交付要求，确认适合的系列与型号。
确认安装边界
核对空间、接口、连接方式与现有系统的兼容性。
匹配技术参数
结合性能、材料、寿命与合规要求进行综合比较。
确认型号与交付
核对完整型号、数量、资料和交期，形成可执行方案。
技术参数
关键规格一览
品牌Curtis
产品序列F-Series
输入电压24-48 V
输出电流额定值280 Arms
工作温度–40 to 50 °C
存储温度–40 to 95 °C
防护等级IP67
频次10 kHz
符合规格EN 12895, EN ISO 13849, EN 1175
电机类型AC Induction, PMAC, BLDC
外框尺寸200 x 120 x 57.5 mm
通讯接口CANopen
具体产品
型号与订货号
共 6 条产品记录。独立型号尚未确认的产品可按订货号查询。
Curtis AC Motor Controller - AC F2-C · AC F2-C 24-120-200-001独立型号待确认订货号：AC F2-C 24-120-200-001零件号代用查看产品 →
Curtis AC Motor Controller - AC F2-C · AC F2-C 24-200-200-001独立型号待确认订货号：AC F2-C 24-200-200-001零件号代用查看产品 →
Curtis AC Motor Controller - AC F2-C · AC F2-C 24-240-280-001独立型号待确认订货号：AC F2-C 24-240-280-001零件号代用查看产品 →
Curtis AC Motor Controller - AC F2-C · AC F2-C 24-280-300-001独立型号待确认订货号：AC F2-C 24-280-300-001零件号代用查看产品 →
Curtis AC Motor Controller - AC F2-C · AC F2-C 48-150-200-001独立型号待确认订货号：AC F2-C 48-150-200-001零件号代用查看产品 →
Curtis AC Motor Controller - AC F2-C · AC F2-C 48-240-240-001独立型号待确认订货号：AC F2-C 48-240-240-001零件号代用查看产品 →
产品资料
图片、文档与 CAD
共 4 项资料。已归档文件可直接打开；仅有官网入口的资料会标注“官网链接”。

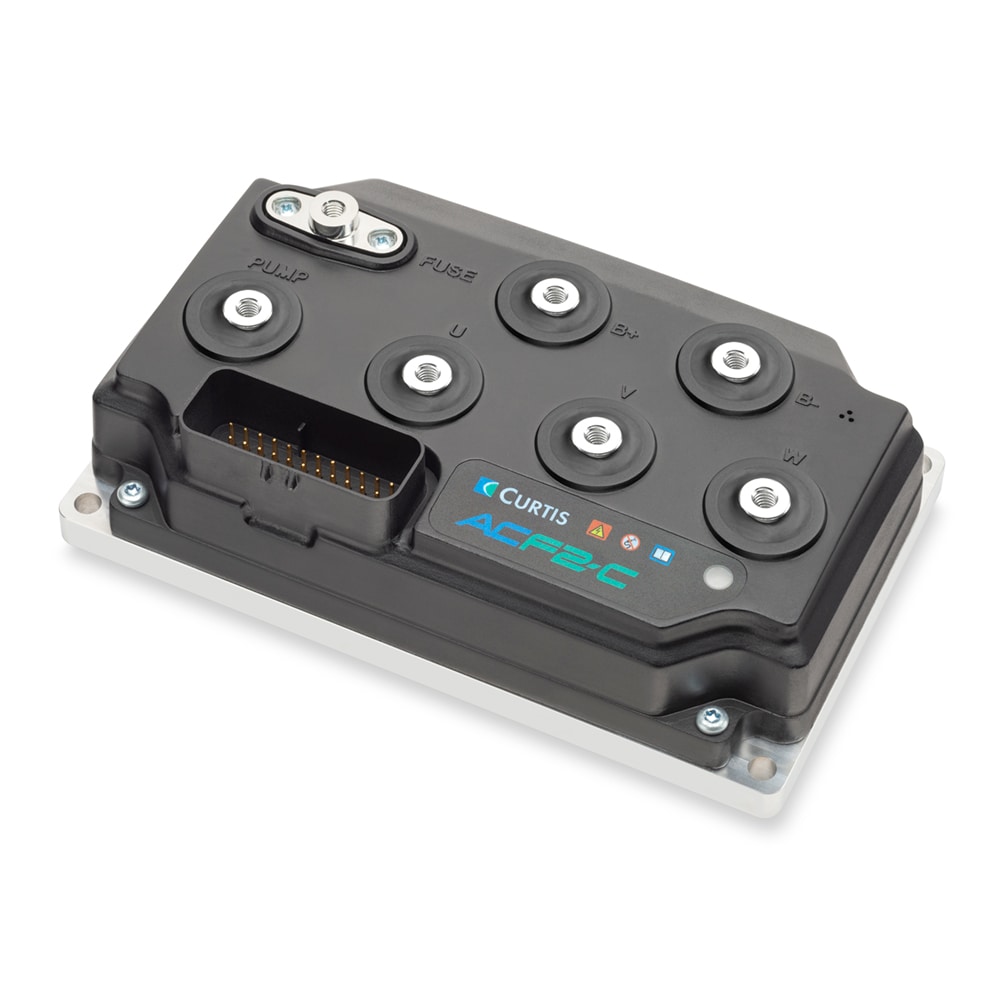

产品图片 · 本地资料Thumbnail 2

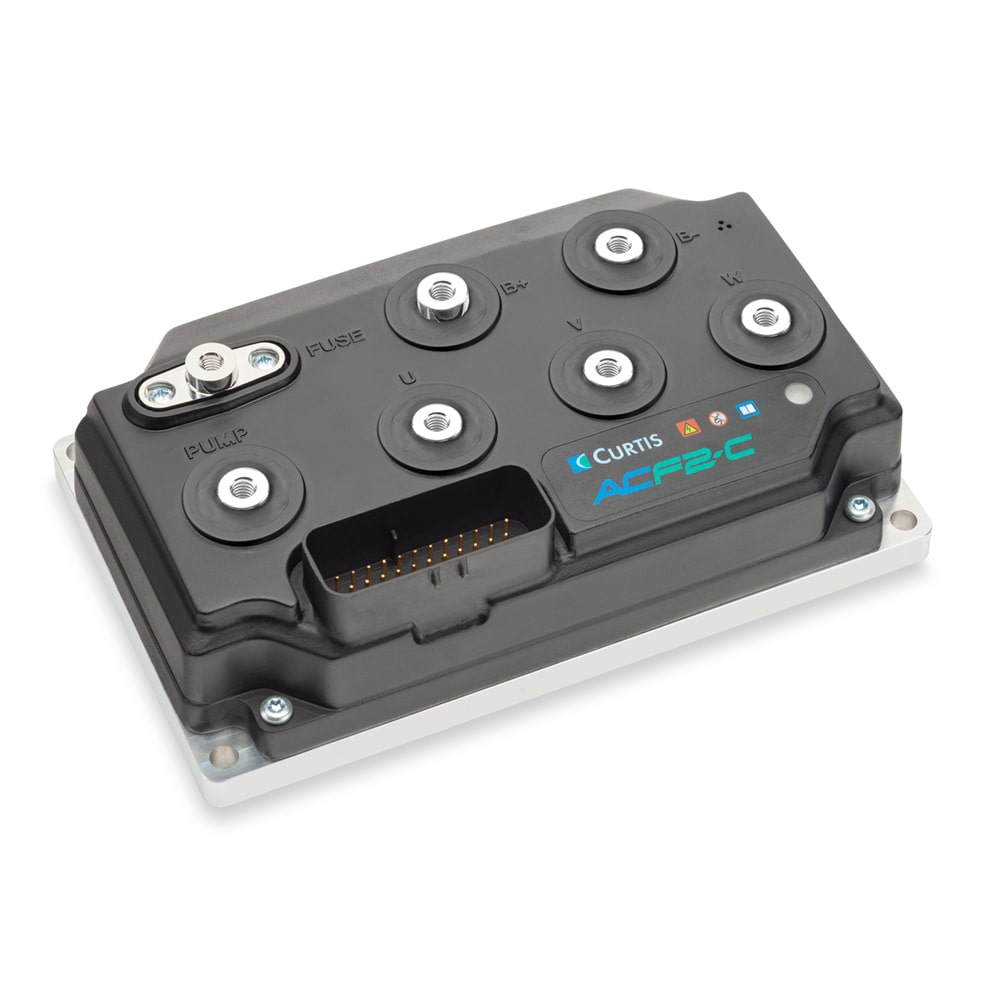

产品图片 · 本地资料Thumbnail 3工程资源
样本、CAD 与选型支持
下载已发布资料，或联系应用工程师获取完整配置建议。
Curtis AC Motor Controller - AC F2-C
