产品系列

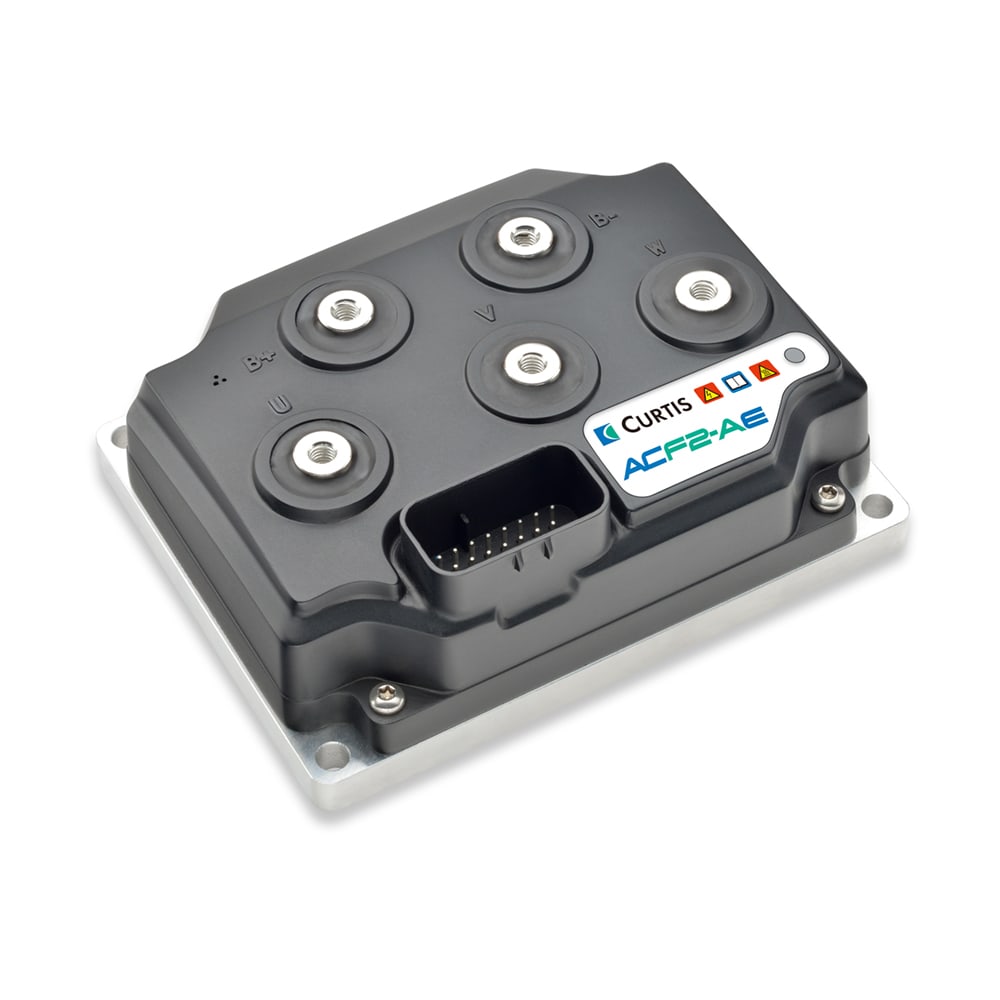

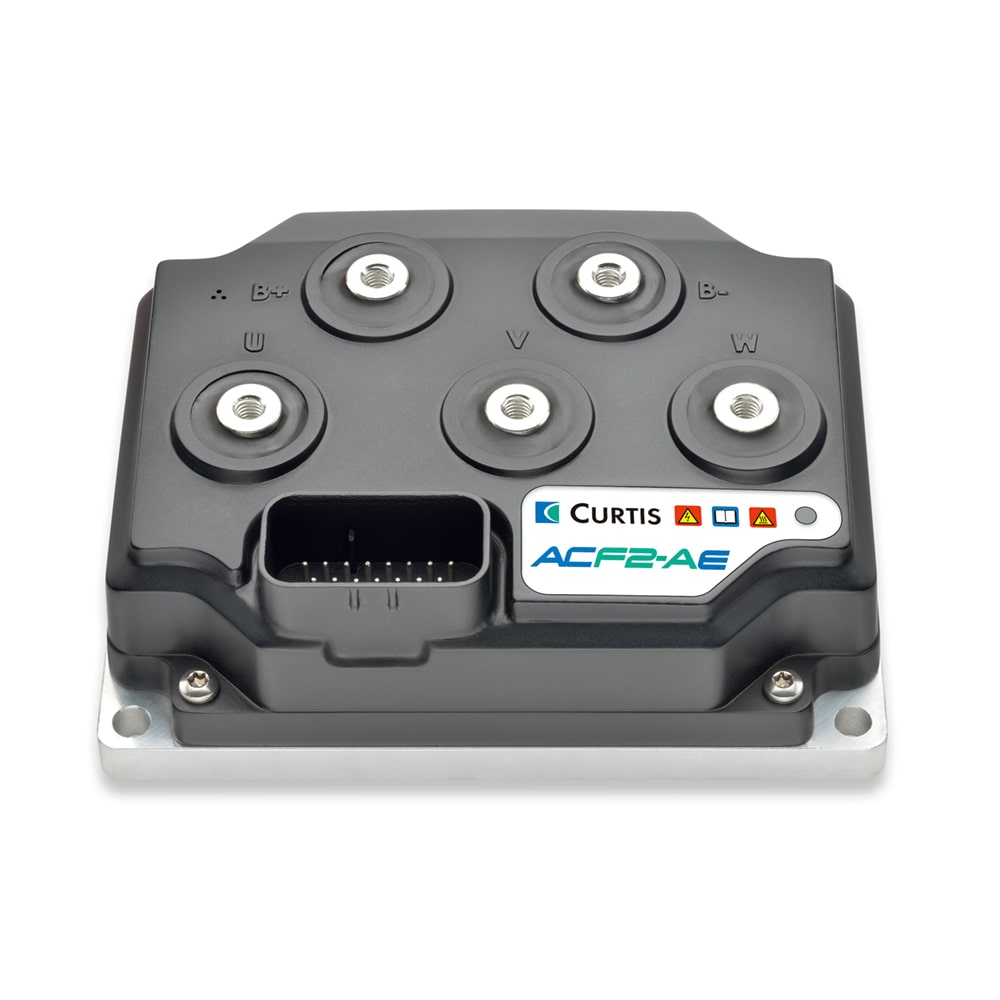

Curtis AC Motor Controller - AC F2-AE
The Curtis AC F2-AE motor controller delivers precise speed and torque control for AC induction, PMAC, and BLDC motors. Designed for compact EVs, it supports traction and pump applications with flexible I/O and CANopen integration.
SERIES OVERVIEW
Curtis AC Motor Controller - AC F2-AE
The Curtis AC F2-AE motor controller delivers precise speed and torque control for AC induction, PMAC, and BLDC motors. Designed for compact EVs, it supports traction and pump applications with flexible I/O and CANopen integration.
- 系列编号
- —
- 所属技术
- 机电技术
- 产品记录
- 3
- 图片与资料
- 5
系列介绍
产品能力与选型说明
Precise control of AC induction, PMAC, and BLDC motors.
Field-oriented control for smooth, efficient performance.
Dual microprocessor architecture supporting functional safety.
Flexible, mappable I/O for simplified system integration.
Full CANopen compliance with configurable CAN communication.
Integrated VCL enables system-level control without additional hardware.
Compact, rugged design with IP67 environmental protection.
Wide compatibility with motor types and position sensors.
Material handling and warehouse automation
Airport Ground Support Equipment (GSE)
Compact Construction Equipment
Agricultural and Turf Equipment
Industrial and Utility Electric Vehicles
Low-speed electric vehicles
Forklifts and warehouse trucks
Class III pallet trucks and pedestrian-operated vehicles
Hydraulic pump and auxiliary system control
Compact off-highway and specialty vehicles
Electric utility and industrial machines
Marine electric propulsion systems
On-engine generator (OEG) hybrid systems
SELECTION PATH
从工况到型号，一步步缩小选择范围
结合现场参数、安装边界和交付要求，确认适合的系列与型号。
确认安装边界
核对空间、接口、连接方式与现有系统的兼容性。
匹配技术参数
结合性能、材料、寿命与合规要求进行综合比较。
确认型号与交付
核对完整型号、数量、资料和交期，形成可执行方案。
技术参数
关键规格一览
品牌Curtis
产品序列F-Series
输入电压24-48 V
输出电流额定值280 Arms
工作温度–40 to 50 °C
存储温度–40 to 95 °C
防护等级IP67
频次10 nominal (configurable) kHz
符合规格EN 12895, EN ISO 13849, EN 1175
电机类型AC Induction, PMAC, BLDC
外框尺寸120 x 155 x 55 mm
通讯接口CANopen or J1939
具体产品
型号与订货号
共 3 条产品记录。独立型号尚未确认的产品可按订货号查询。
Curtis AC Motor Controller - AC F2-AE · AC F2-AE 24-240-001独立型号待确认订货号：AC F2-AE 24-240-001零件号代用查看产品 →
Curtis AC Motor Controller - AC F2-AE · AC F2-AE 24-280-051独立型号待确认订货号：AC F2-AE 24-280-051零件号代用查看产品 →
Curtis AC Motor Controller - AC F2-AE · AC F2-AE 48-240-001独立型号待确认订货号：AC F2-AE 48-240-001零件号代用查看产品 →
