Curtis AC Induction Motor Controller - 1222
The Curtis 1222 electric power steering controller provides precise steer-by-wire control for AC induction motors, delivering responsive steering, advanced safety, and reliable performance for material handling and mobile equipment.
SERIES OVERVIEW
Curtis AC Induction Motor Controller - 1222
The Curtis 1222 electric power steering controller provides precise steer-by-wire control for AC induction motors, delivering responsive steering, advanced safety, and reliable performance for material handling and mobile equipment.
- 系列编号
- —
- 所属技术
- 机电技术
- 产品记录
- 3
- 图片与资料
- 5
系列介绍
产品能力与选型说明
Precise steer-by-wire control for AC induction steering motors
Supports absolute and relative position steering modes
Advanced vector control for smooth steering response and high efficiency
Dual redundant microprocessors with Category 3 functional safety architecture
Support for CAN, encoder, analog, Sin/Cos, and sawtooth steering inputs
Programmable steering ratios, homing functions, center offsets, and end-stop protection
CANopen communication for simplified vehicle integration
Integrated diagnostics, fault logging, and status LED indication
Field-upgradeable software and Curtis programming tool support
Rugged sealed design with IP65 environmental protection
Material handling
Warehouse automation
Aerial work platforms
Industrial vehicles
Ground support equipment (GSE)
Specialty electric vehicles
Reach trucks
Stackers
Order pickers
Electric forklifts
Scissor lifts
Steer-by-wire industrial vehicles
SELECTION PATH
从工况到型号，一步步缩小选择范围
结合现场参数、安装边界和交付要求，确认适合的系列与型号。
确认安装边界
核对空间、接口、连接方式与现有系统的兼容性。
匹配技术参数
结合性能、材料、寿命与合规要求进行综合比较。
确认型号与交付
核对完整型号、数量、资料和交期，形成可执行方案。
技术参数
关键规格一览
分部Electronic Controls and Motion Division
品牌Curtis
输入电压24-80 V
输出电流额定值120 Arms
防护等级IP 67
符合规格ISO 13849-1; EN 1175; EN12895
电机类型AC Induction
外框尺寸146 x 164 x 59 mm
具体产品
型号与订货号
共 3 条产品记录。独立型号尚未确认的产品可按订货号查询。
产品资料
图片、文档与 CAD
共 5 项资料。已归档文件可直接打开；仅有官网入口的资料会标注“官网链接”。

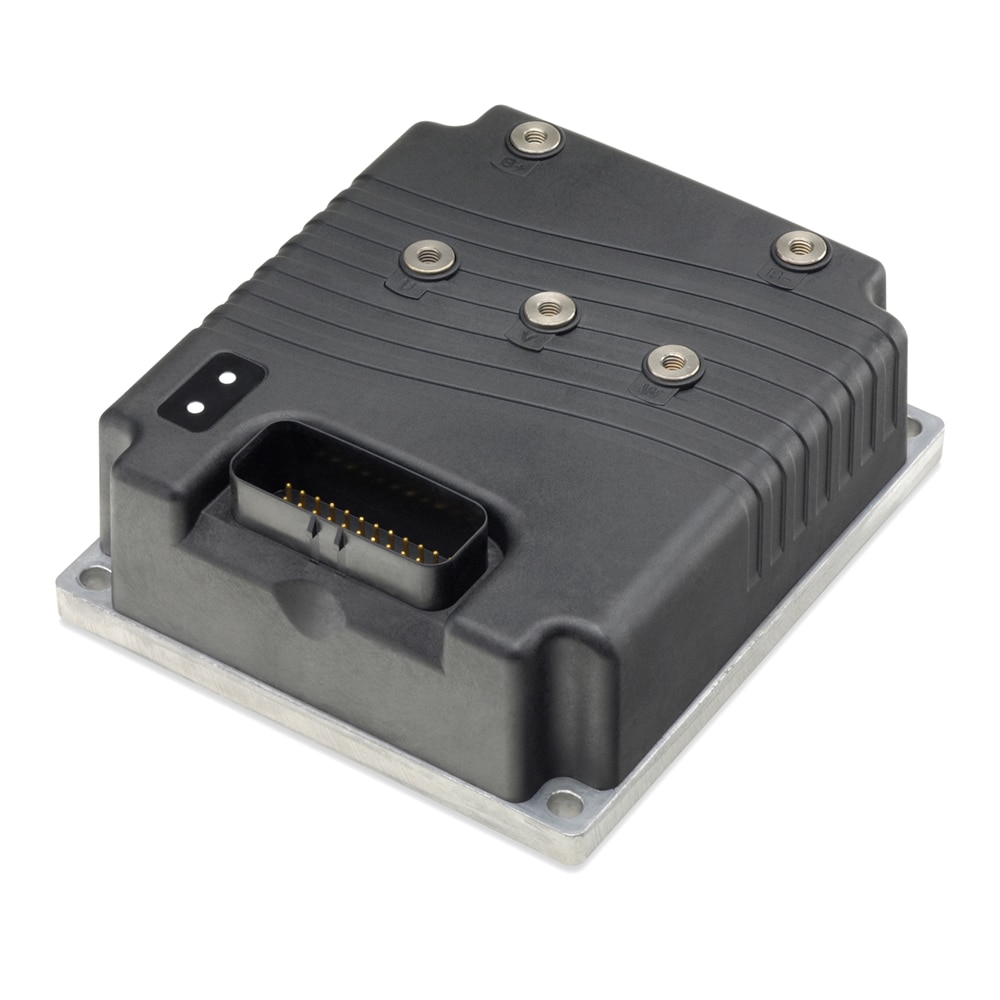

产品图片 · 本地资料Thumbnail 1

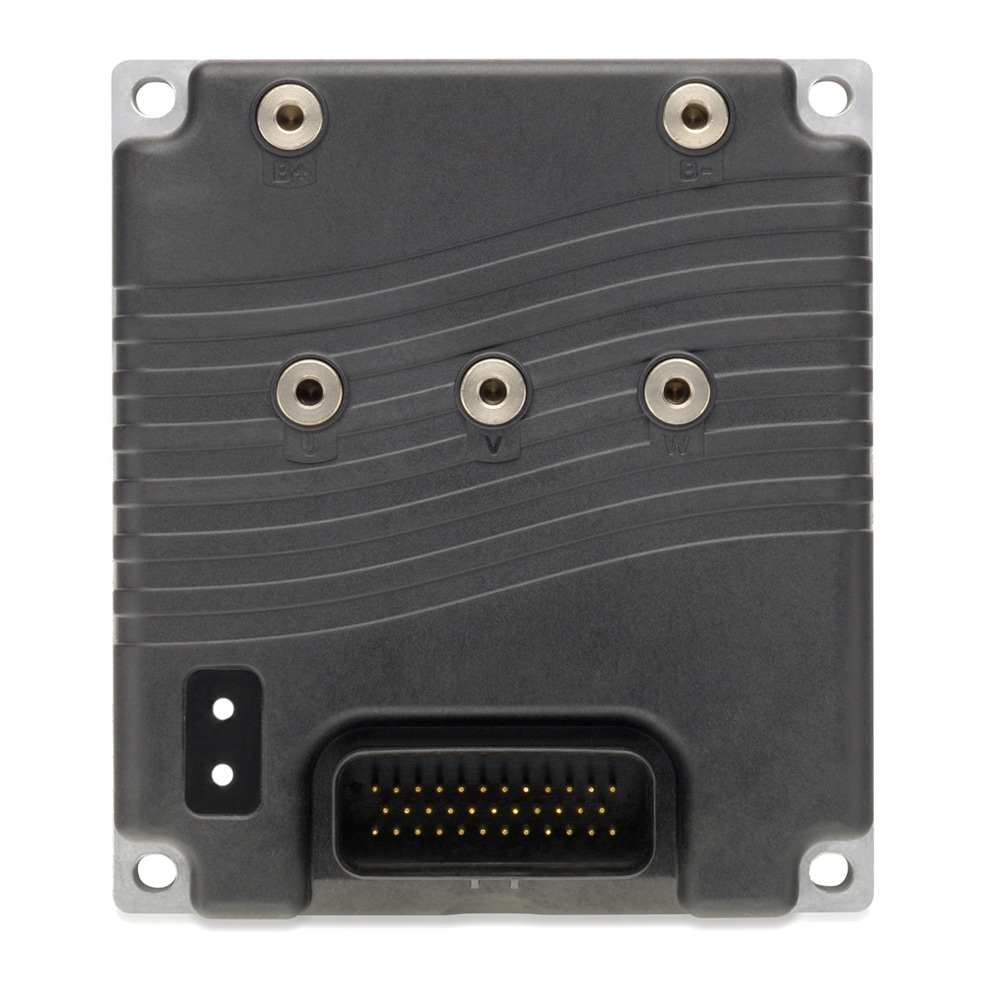

产品图片 · 本地资料Thumbnail 2工程资源
